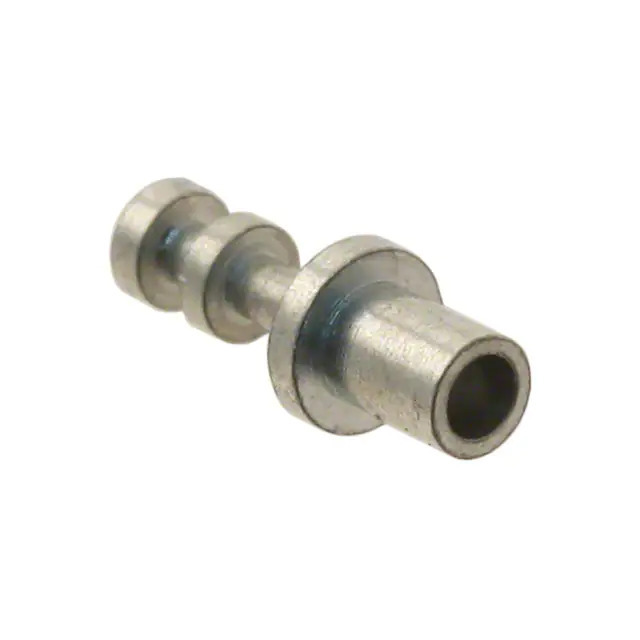

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Turret Connectors
Mfr Keystone Electronics
Series -
Package Bulk
Product Status Active
Terminal Type Single End
Number of Turrets Double
Length - Above Board 0.156" (3.96mm)
Length - Below Flange 0.084" (2.13mm)
Length - Overall 0.240" (6.10mm)
Mounting Type Through Hole
Termination Staking Flare
Flange Diameter 0.094" (2.39mm)
Diameter - Turret Head 0.062" (1.57mm)
Staking Side OD 0.062" (1.57mm)
Staking Side ID -
Mounting Hole Diameter 0.067" (1.70mm)
Board Thickness 0.062" (1.57mm)
Contact Material Brass
Contact Finish Tin
Contact Finish Thickness -
Insulation Non-Insulated
Material - Insulation -
Insulation Color -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363985-1593-2
Ultra Librarian 3D Model Ultra Librarian 1593-2 CAD Model

Description

The Turret Connector is a versatile and high-quality connector designed for use in various electronic applications. Manufactured by Keystone Electronics, a trusted name in the industry, this connector is perfect for professionals and hobbyists alike.

  • Mounting Type: Through Hole
  • Category: Connectors, Interconnects - Terminals - Turret Connectors
  • Status: Active
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Overall Length: 0.240" (6.10mm)
