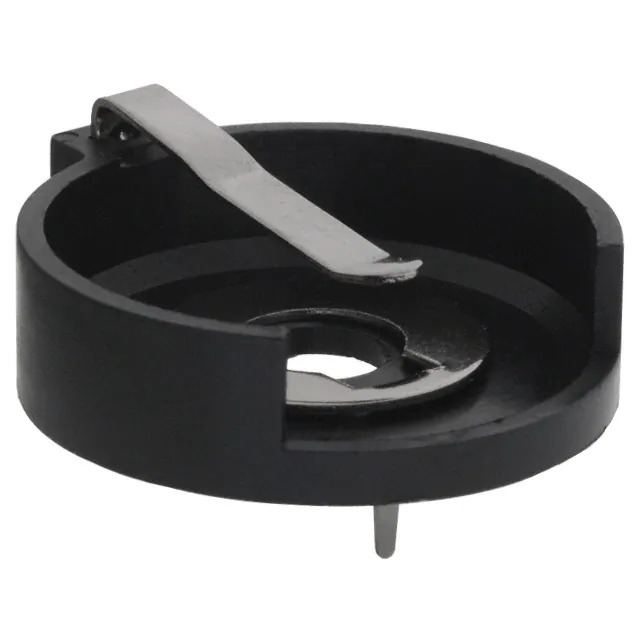

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Battery Products - Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Series -
Package Bulk
Product Status Active
Battery Type, Function Coin Cell, Holder
Style Holder (Open)
Battery Cell Size Coin, 24.5mm
Number of Cells 1, 2
Battery Series 2430 (2), 2477 (1)
Mounting Type PCB, Through Hole
Termination Style PC Pin
Height Above Board 0.403" (10.24mm)
Temperature Range - Operating -50°C ~ 145°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1365981-1025-7
Ultra Librarian 3D Model Ultra Librarian 1025-7 CAD Model

Description

The Keystone Electronics Battery Holders, Clips, Contacts are essential components for securely holding and connecting batteries in various devices. This particular battery holder, with Win Source Part Number 1365981-1025-7, is designed for coin cell batteries.

  • Battery Type, Function: Coin Cell
  • Manufacturer: Keystone Electronics
  • For Use With/Related Products: Coin Cell 1/2, 1
  • Mounting Type: PCB, Through Hole
  • Operating Temperature: -50°C ~ 145°C
  • Termination Style: PC Pin
  • Height Above Board: 0.403" (10.24mm)
  • Product Status: Active
  • REACH Status: Unaffected
