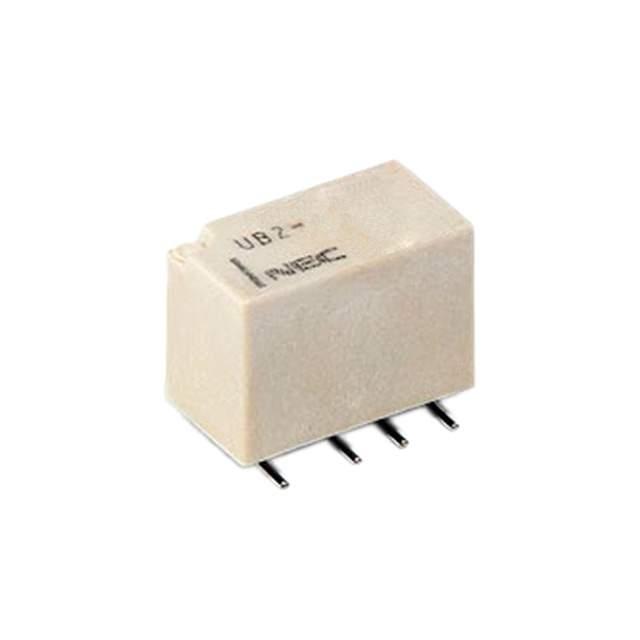

The Kemet UB2-5NE-L is a general-purpose, non-latching relay with DPDT (2 Form C) contact form.

• Coil Voltage: It has a coil voltage of 5VDC, a coil resistance of 250 ohms, and a coil current of 20mA.
• Temperature Range: The relay operates in a temperature range of -40°C to 85°C with an operate time of 2ms and a release time of 1ms.
• Switching Voltage: The switching voltage is 250VAC and 220VDC - Max with a contact rating of 1A.
• Voltage: The turn on voltage (Max) is 3.75VDC, and the turn off voltage (Min) is 0.5VDC.
• Dimensions: The relay measures 0.413" L x 0.413" W x 0.287" H (10.50mm x 10.50mm x 7.30mm) with gull-wing termination style and is surface mountable.
• Popularity: Its popularity is medium, and the supply and demand status is limited.
