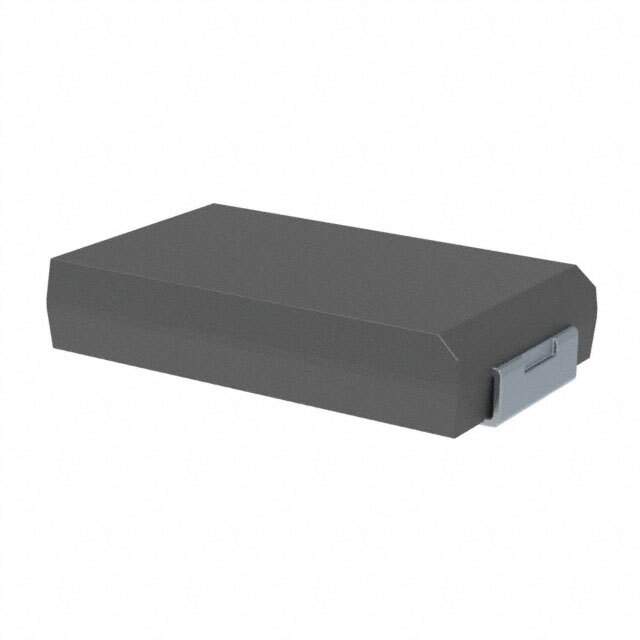

T520W336M016ATE045 Real Image
Same model may have multiple batches, images only for reference.

T520W336M016ATE045

Part No T520W336M016ATE045
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 33UF 16V 2917 / T520, Tantalum, Polymer Tantalum, 33 uF, 20%, 16 V, SMD, Polymer, Molded, Low Profile/ESR, NonCombustible, 45 mOhms, 7343, Height Max = 1.5mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Kemet
Packaging Reel
Capacitance 33μF
Tolerance ±20%
Voltage - Rated 16V
Type Molded
ESR (Equivalent Series Resistance) 45mOhm at 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime at Temp. 2000 Hrs at 105°C
Mounting Style SMD
Manufacturer Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Size Code W
Features General Purpose
Manufacturer Pack Quantity 1,000
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813544-T520W336M016ATE045
Ultra Librarian 3D Model Ultra Librarian T520W336M016ATE045 CAD Model

Description

The Kemet capacitor is a molded type.

  • Capacitance: 33μF (±20%)
  • Voltage Rating: 16V
  • ESR: 45mOhm @ 100kHz
  • Mounting: SMD
  • Package: 2917 (7343 Metric)
  • Dimensions: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height Seated (maximum): 0.059" (1.50mm)
  • Lifetime at Temperature: 2000 Hrs @ 105°C
