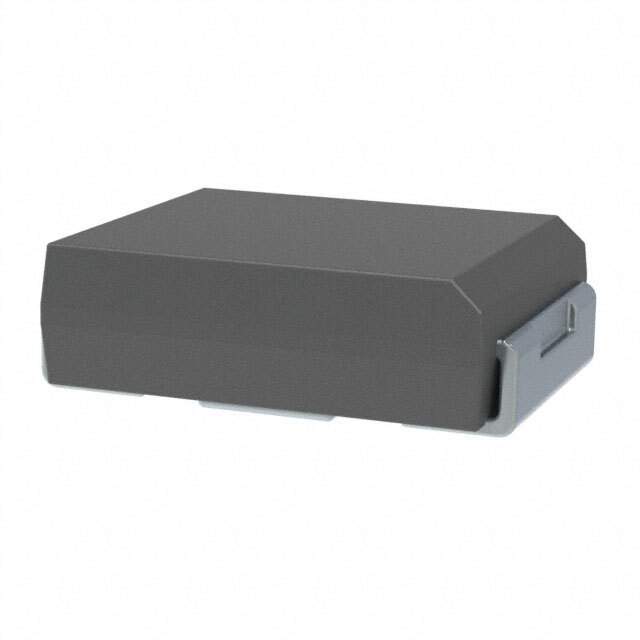

Same model may have multiple batches, images only for reference.

T520T156M12RATE080

Name: T520T156M12RATE080
Brand: Kemet
SKU: 1331184
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	T520T156M12RATE080
Manufacturer	Kemet
Catalog	Tantalum - Polymer Capacitors
Description	CAP TANT POLY 15UF 12.5V 1411 / 15 µF Molded Tantalum Polymer Capacitor 12.5 V 1411 (3528 Metric) 80mOhm @ 100kHz
Datasheet	T520T156M12RATE080 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum - Polymer Capacitors
Manufacturer	Kemet
Packaging	Reel - TR
Capacitance	15 µF
Tolerance	±20%
Voltage - Rated	12.5 V
Type	Molded
ESR (Equivalent Series Resistance)	80mOhm @ 100kHz
Temperature Range - Operating	-55°C ~ 105°C
Lifetime @ Temp.	2000 Hrs @ 105°C
Mounting	Surface Mount
Case / Package	1411 (3528 Metric)
Size / Dimension	0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max)	0.047" (1.20mm)
Manufacturer Size Code	T
Features	General Purpose
Base Product Number	T520T
RoHS Status	ROHS3 Compliant
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Other Part Number	399-5309-6,399-5309-2,399-5309-1
Standard Package	3,000
Win Source Part Number	1331184-T520T156M12RATE080
Ultra Librarian 3D Model	Ultra Librarian T520T156M12RATE080 CAD Model

Alternative Products

Description

Kemet T520T156M12RATE080 is a molded tantalum-polymer capacitor that is available in reel packaging.

Capacitance: 15 µF
Voltage Rating: 12.5 V
ESR: 80mOhm @ 100kHz
Lifetime @ temp: 2000 Hrs @ 105°C
Compliance: ROHS3
