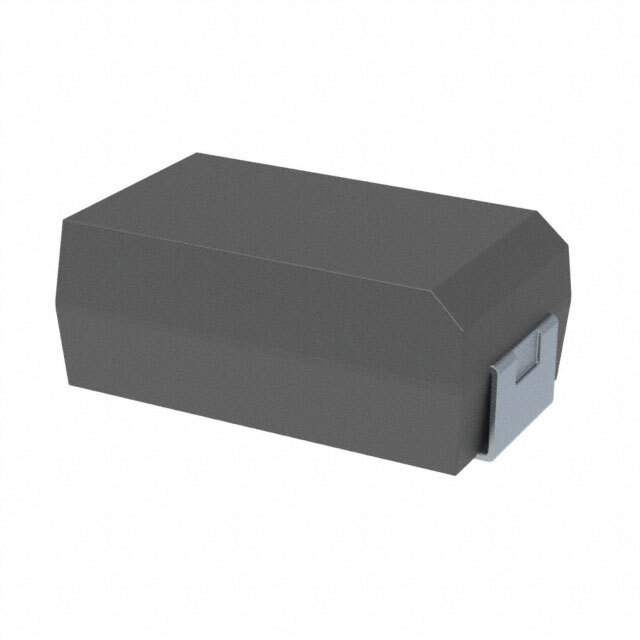

T520D687M2R5ASE040 Real Image
Same model may have multiple batches, images only for reference.

T520D687M2R5ASE040

Part No T520D687M2R5ASE040
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description Polymer Tantalum Capacitors 680UF 2.5V 2917
Datasheet
T520D687M2R5ASE040 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 680μF
Tolerance ±20%
Voltage Rating 2.5V
Type Molded
ESR 40 mOhm
Temperature Range - Operating -55°C to 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Win Source Part Number 1105052-T520D687M2R5ASE040
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian T520D687M2R5ASE040 CAD Model

Description

The Kemet 1105052-T520D687M2R5ASE040 capacitor is a molded type capacitor with a capacitance of 680μF and a voltage rating of 2.5V.

  • Manufacturer: Kemet
  • Type: Molded
  • Capacitance: 680μF
  • Voltage Rating: 2.5V
  • Tolerance: ±20%
  • ESR: 40 mOhm
  • Lifetime: 2000 hours @ 105°C
  • Manufacturer Size Code: D
  • Application: General-Purpose
  • Mounting: SMD (SMT)
  • Height (Max): 0.122" (3.10mm)
  • Dimensions: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
