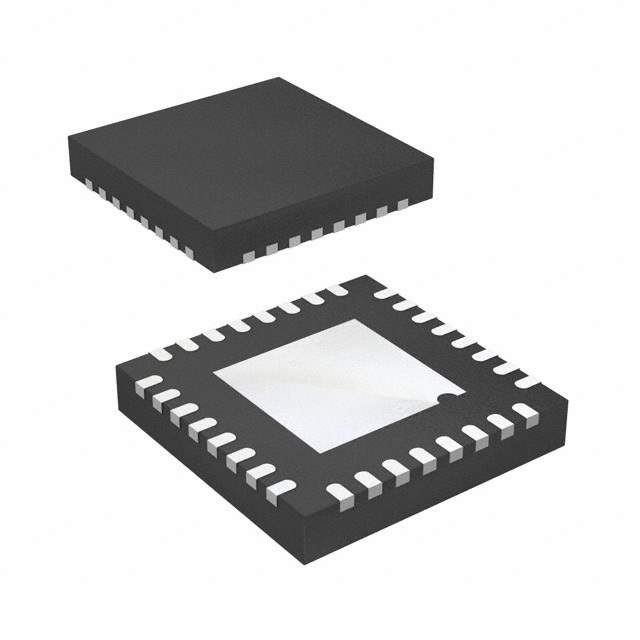

PE42820MLBA-X Real Image
Same model may have multiple batches, images only for reference.

PE42820MLBA-X

Part No PE42820MLBA-X
Manufacturer Peregrine Semiconductor
Catalog RF Switches
Description IC RF SWITCH SPDT 50 OHM 32QFN
Datasheet
PE42820MLBA-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Peregrine Semiconductor
Packaging Reel - TR
Status Active
Frequency - Lower 30MHz
Frequency - Upper 2.7GHz
Isolation @ Frequency 24dB @ 2.7GHz (typ)
Insertion Loss @ Frequency 0.7dB @ 2.7GHz
IIP3 81dBm (typ)
Topology Reflective
Circuit SPDT
Impedance 50 Ohm
Temperature Range - Operating -40°C to 85°C
Supply Voltage - Operating 2.3 V to 5.5 V
RF Type General Purpose
Case / Package 32-QFN (5x5)
Win Source Part Number 1087315-PE42820MLBA-X
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE42820MLBA-X CAD Model

Description

The Peregrine Semiconductor PE42820MLBA-X is a reflective SPDT switch designed for general-purpose RF applications.

  • Impedance: 50 Ohm
  • Frequency Range: 30MHz to 2.7GHz
  • Isolation: 24dB @ 2.7GHz
  • Insertion Loss: 0.7dB @ 2.7GHz
  • IIP3: 81dBm (typ)
  • Temperature Range: -40°C to 85°C
  • Package: 32-QFN (5x5)
  • Supply Voltage: 2.3V to 5.5V
  • Supply and Demand Status: Limited
