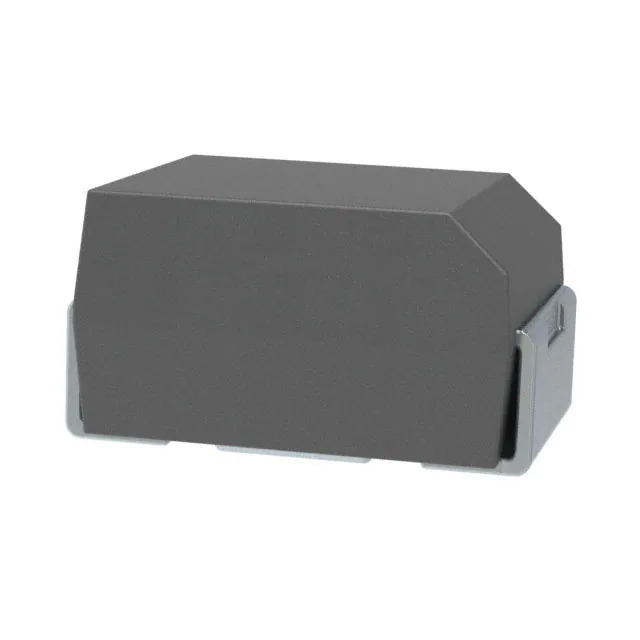

Same model may have multiple batches, images only for reference.

T520B686M006ATE025

Name: T520B686M006ATE025
Brand: Kemet
SKU: 1355606
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	T520B686M006ATE025
Manufacturer	Kemet
Catalog	Tantalum - Polymer Capacitors
Description	CAP TANT POLY 68UF 6.3V 1411 / 68 µF Molded Tantalum Polymer Capacitor 6.3 V 1411 (3528 Metric) 25mOhm @ 100kHz
Datasheet	T520B686M006ATE025 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Tantalum - Polymer Capacitors
Mfr	KEMET
Series	KO-CAP® T520
Package	Tape & Reel
Product Status	Active
Capacitance	68 µF
Tolerance	±20%
Voltage - Rated	6.3 V
Type	Molded
ESR (Equivalent Series Resistance)	25mOhm @ 100kHz
Temperature Range - Operating	-55°C ~ 105°C
Lifetime @ Temp.	2000 Hrs @ 105°C
Mounting Type	Surface Mount
Package / Case	1411 (3528 Metric)
Size / Dimension	0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max)	0.079" (2.00mm)
Lead Spacing	-
Manufacturer Size Code	B
Ratings	-
Features	General Purpose
Base Product Number	T520B
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Win Source Part Number	1355606-T520B686M006ATE025
Ultra Librarian 3D Model	Ultra Librarian T520B686M006ATE025 CAD Model

Alternative Products

Description

The T520B686M006ATE025 is a molded tantalum-polymer capacitor from KEMET's KO-CAP T520 series.

Capacitance: 68 µF
Voltage Rating: 6.3 V
Tolerance: ±20%
ESR @ 100kHz: 25mOhm
Size: 0.138" L x 0.110" W (3.50mm x 2.80mm)
Mounting Type: Surface Mount
Lifetime: 2000 hours @ 105°C
