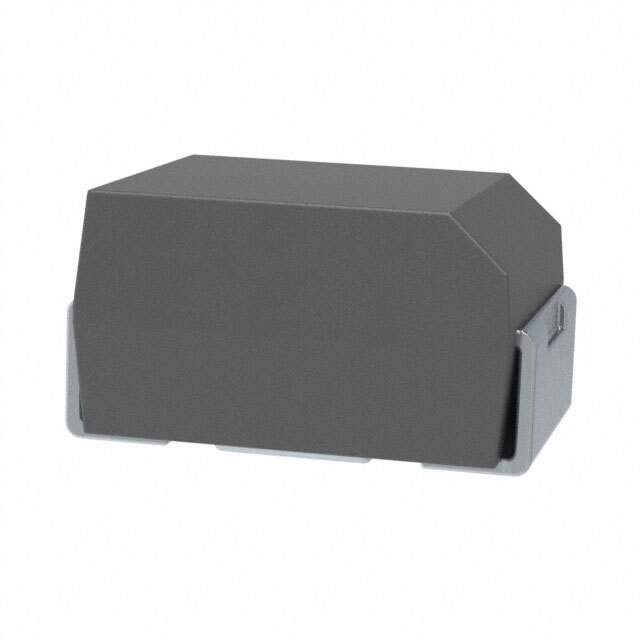

T520B476M010ATE070 Real Image
Same model may have multiple batches, images only for reference.

T520B476M010ATE070

Part No T520B476M010ATE070
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 47UF 10V 3528 / Tantalum, Polymer Tantalum, T520, 47 uF, 20%, 10 V, 3528, SMD, Polymer, Molded, Low ESR, Non-Combustible, 70 mOhms, 2.1mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Kemet
Packaging Reel
Capacitance 47μF
Tolerance ±20%
Voltage - Rated 10V
Type Molded
ESR (Equivalent Series Resistance) 70mOhm at 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime at Temp. 2000 Hrs at 105°C
Mounting Style SMD
Manufacturer Package 1411 (3528 Metric)
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Maximum) 0.083" (2.10mm)
Manufacturer Size Code B
Features General Purpose
Manufacturer Pack Quantity 2,000
MSL Level 3 (168 Hours)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 801934-T520B476M010ATE070
Ultra Librarian 3D Model Ultra Librarian T520B476M010ATE070 CAD Model

Description

The Kemet 801934-T520B476M010ATE070 capacitor is a molded type capacitor.

  • Capacitance: 47μF
  • Tolerance: ±20%
  • Voltage Rating: 10V
  • ESR @ 100kHz: 70mOhm
  • Applications: General Purpose
  • Package: Reel
  • Dimensions: 0.138" L x 0.110" W (3.50mm x 2.80mm)
  • Package: 1411 (3528 Metric)
  • Lifetime @ 105°C: 2000 Hrs
