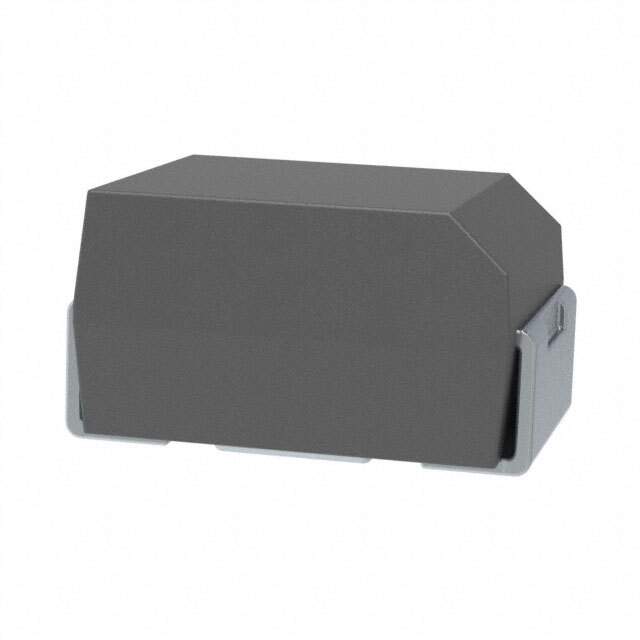

Same model may have multiple batches, images only for reference.

T520B157M006ATE045

Name: T520B157M006ATE045
Brand: Kemet
SKU: 796132
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	T520B157M006ATE045
Manufacturer	Kemet
Catalog	Tantalum - Polymer Capacitors
Description	CAP TANT POLY 150UF 6.3V 3528 / Cap Tant Polymer 150uF 6.3VDC B CASE 20% (3.5 X 2.8 X 1.9mm) SMD 3528-21 0.045 Ohm 105°C T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Kemet
Series	KO-CAP T520
Packaging	Reel package
Capacitance	150μF
Tolerance	±20%
Voltage Rating DC	6.3V
Type	Molded
ESR (Equivalent Series Resistance)	45 mOhm
Operating Temperature Range	-55°C ~ 105°C
Lifetime @ Temp.	2000 Hrs @ 105°C
Mounting	SMD
Package	1411 (3528 Metric)
Dimension	0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Maximum)	0.083" (2.10mm)
Manufacturer Size Code	B
Features	General
Win Source Part Number	796132-T520B157M006ATE045
Popularity	Medium
Supply and Demand Status	Balance
Family Name	T520
Introduction Date	September 26, 2011
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2030
Ultra Librarian 3D Model	Ultra Librarian T520B157M006ATE045 CAD Model

Description

The Kemet KO-CAP T520 series capacitor is a molded type capacitor that is designed to operate within a temperature range of -55°C to 105°C.

Capacitance: 150μF
Tolerance: ±20%
ESR (Equivalent Series Resistance): 45 mOhm
Lifetime: 2000 Hrs @ 105°C
Package: 1411 (3528 Metric) SMD
Dimension: 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height Seated: 0.083" (2.10mm)
Voltage Rating DC: 6.3V
