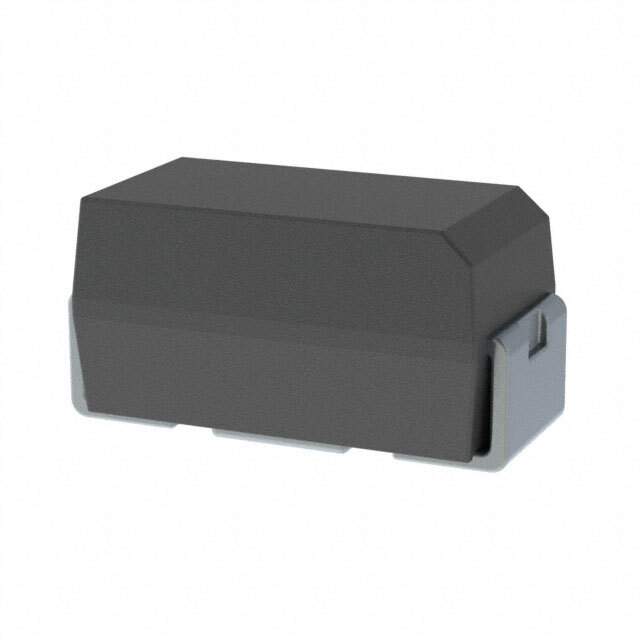

Same model may have multiple batches, images only for reference.

T520A226M010ATE080

Name: T520A226M010ATE080
Brand: Kemet
SKU: 1328594
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	T520A226M010ATE080
Manufacturer	Kemet
Catalog	Tantalum - Polymer Capacitors
Description	CAP TANT POLY 22UF 10V 1206 / 22 µF Molded Tantalum Polymer Capacitor 10 V 1206 (3216 Metric) 80mOhm @ 100kHz
Datasheet	T520A226M010ATE080 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum - Polymer Capacitors
Manufacturer	Kemet
Packaging	Reel - TR
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	10 V
Type	Molded
ESR (Equivalent Series Resistance)	80mOhm @ 100kHz
Temperature Range - Operating	-55°C ~ 105°C
Lifetime @ Temp.	2000 Hrs @ 105°C
Mounting	Surface Mount
Case / Package	1206 (3216 Metric)
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.071" (1.80mm)
Manufacturer Size Code	A
Features	General Purpose
Base Product Number	T520A
RoHS Status	ROHS3 Compliant
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Other Part Number	399-9774-6,399-9774-2,399-9774-1
Standard Package	2,000
Win Source Part Number	1328594-T520A226M010ATE080
Ultra Librarian 3D Model	Ultra Librarian T520A226M010ATE080 CAD Model

Description

The Kemet T520A series offers a 22 µF Tantalum - Polymer Capacitor that is surface mountable.

Capacitance: 22 µF
Type: Tantalum - Polymer Capacitor
Mounting Type: Surface Mountable
Tolerance: ±20%
Voltage Rating: 10 V
Family Name: T520A
Temperature Range: -55°C to 105°C
