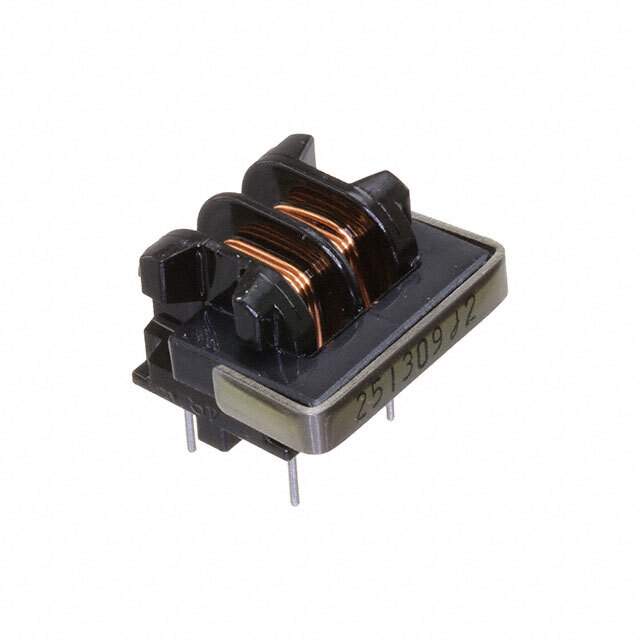

SU9HD-25013 Real Image
Same model may have multiple batches, images only for reference.

SU9HD-25013

Part No SU9HD-25013
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 13.02 µH @ 1 kHz
Current Rating (Max) 2.5A
DC Resistance (DCR) (Max) 42mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.492" (12.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9HD
Other Names 399-SU9HD-25013,UALSU9HD250130
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276470-SU9HD-25013
Ultra Librarian 3D Model Ultra Librarian SU9HD-25013 CAD Model

Description

The Kemet SU9HD-25013 is a through-hole common mode choke designed for power line filtering applications.

  • Voltage Rating: 250V
  • Current Rating: 2.5A
  • Inductance: 13.02 µH @ 1 kHz
  • DC Resistance: 42mOhm
  • Dimensions: 0.669" L x 0.610" W (17.00mm x 15.50mm)
  • Height: 0.492" (12.50mm)
  • Package: Tray package with 4 PC pins
  • Temperature Range: -25°C to 120°C
  • REACH: Unaffected
  • Application: Power line filtering
