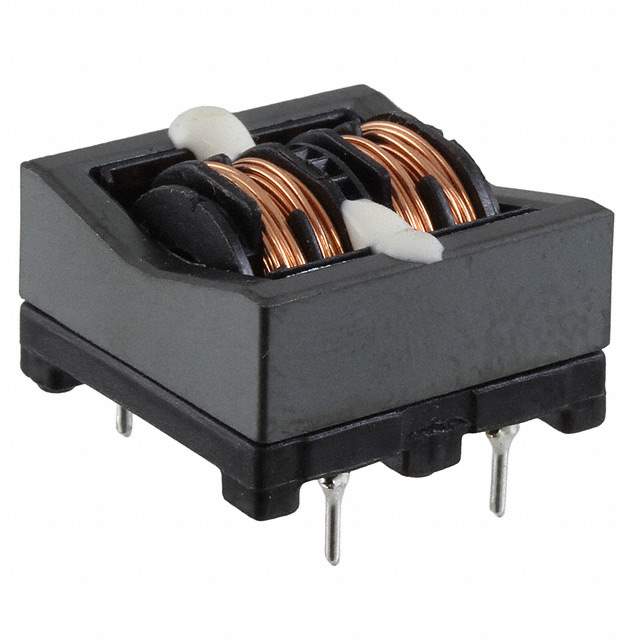

SSR21HS-12115 Real Image
Same model may have multiple batches, images only for reference.

SSR21HS-12115

Part No SSR21HS-12115
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR21HS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 11.5 mH @ 10 kHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 270mOhm
Voltage Rating - DC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.906" L x 0.906" W (23.00mm x 23.00mm)
Height (Max) 0.571" (14.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR21HS
Other Names 399-10787,UALW21HS121150
Standard Package 420
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276543-SSR21HS-12115
Ultra Librarian 3D Model Ultra Librarian SSR21HS-12115 CAD Model

Description

This is a common mode choke with a power line filter type. It has a Win Source Part Number of 1276543-SSR21HS-12115 and belongs to the category of Filters>Common Mode Chokes. It has a voltage rating of 250V and a current rating (Max) of 1.2A. It has a through-hole mounting type and a vertical, 4 PC pin package/case. It has a temperature range of -25°C ~ 120°C and has a dimension of 0.906” L x 0.906” W (23.00mm x 23.00mm). It has an HTSUS of 8504.31.4065 and is made by KEMET.
