Same model may have multiple batches, images only for reference.

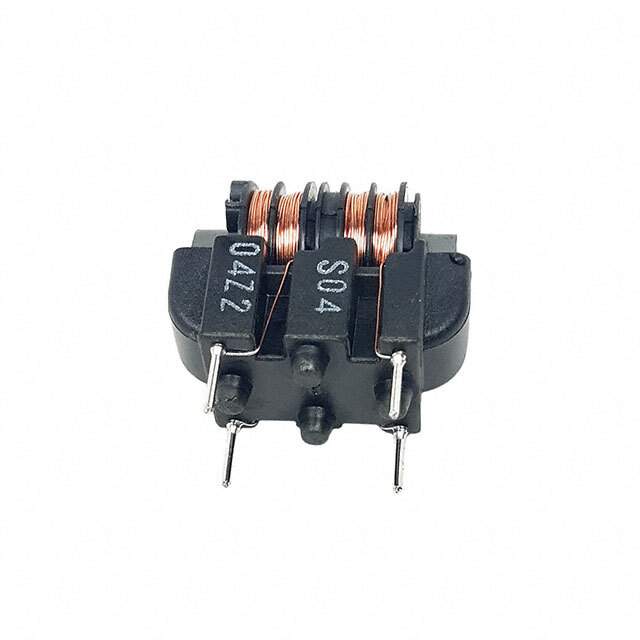

SSR10VS-17048 Real Image
Same model may have multiple batches, images only for reference.

SSR10VS-17048

Part No SSR10VS-17048
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 4.8 mH @ 10 kHz
Current Rating (Max) 1.7A
DC Resistance (DCR) (Max) 170mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10VS
Other Names 399-19044,UALR10VS170480
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276584-SSR10VS-17048
Ultra Librarian 3D Model Ultra Librarian SSR10VS-17048 CAD Model

Description

The SSR10VS-17048 is a common mode choke designed for use in various applications such as filtering and noise suppression.

  • Voltage Rating: 250VAC
  • Current Rating: 1.7A
  • Height: 0.827 inches (21.00mm)
  • Dimension: 0.925 inches L x 0.512 inches W (23.50mm x 13.00mm)
  • Package: vertical, 4 PC pin
  • Mounting: through hole
  • Inductance: 4.8mH @ 10kHz
  • DC Resistance (DCR): 170mOhm
  • Series: SSR series
  • Win Source Part Number: 1276584-SSR10VS-17048
  • Manufacturer: KEMET
