Same model may have multiple batches, images only for reference.

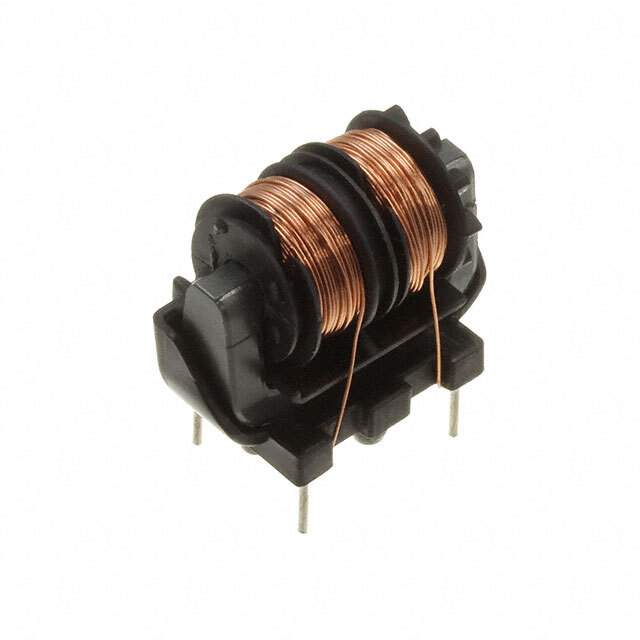

SSR10V-30016 Real Image
Same model may have multiple batches, images only for reference.

SSR10V-30016

Part No SSR10V-30016
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 1.6 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 60mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10V
Other Names UALR10V3001600,399-19035
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276645-SSR10V-30016
Ultra Librarian 3D Model Ultra Librarian SSR10V-30016 CAD Model

Description

The KEMET SSR10V-30016 is a common mode choke filter that is suitable for a variety of applications.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 3A
  • Inductance: 1.6mH @ 10kHz
  • DC Resistance: 60mOhm
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, 4 PC pin
  • Operating Temperatures: -25°C to 120°C
  • Height: 21.00mm
  • Width: 13.00mm
