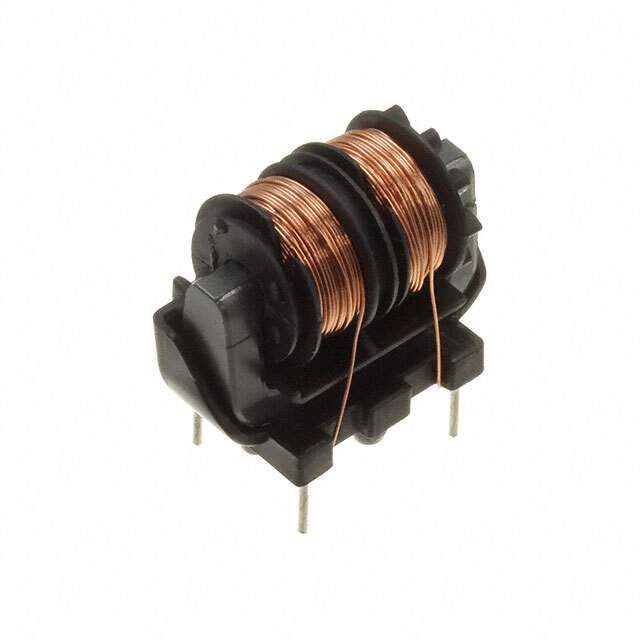

SSR10V-11140 Real Image
Same model may have multiple batches, images only for reference.

SSR10V-11140

Part No SSR10V-11140
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 14 mH @ 10 kHz
Current Rating (Max) 1.1A
DC Resistance (DCR) (Max) 370mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10V
Other Names UALR10V1114000,399-19031
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276627-SSR10V-11140
Ultra Librarian 3D Model Ultra Librarian SSR10V-11140 CAD Model

Description

The KEMET SSR10V-11140 is a common mode choke used in filters.

  • Voltage Rating: 250V AC
  • Current Rating: 1.1A
  • Package: 4 PC Pins
  • Mounting Type: Through Hole
  • Height: 0.827 inches
  • Series: SSR
  • Inductance: 14 millihenries @ a frequency of 10 kilohertz
  • DC Resistance: 370 milliohms
  • Temperature Range: -25 degrees Celsius to 120 degrees Celsius
