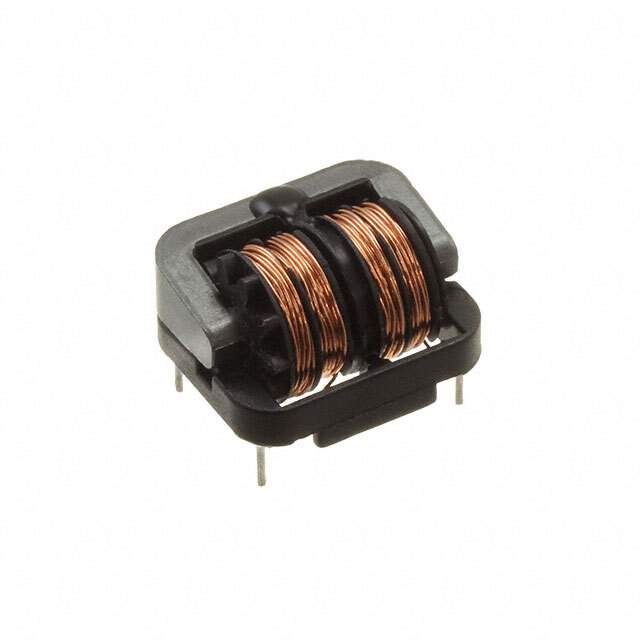

Same model may have multiple batches, images only for reference.

SSR10HS-13075

Name: SSR10HS-13075
Brand: Kemet
SKU: 1276547
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSR10HS-13075
Manufacturer	Kemet
Catalog	Common Mode Chokes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	KEMET
Series	SSR
Package	Tray
Number of Lines	2
Inductance @ Frequency	7.5 mH @ 10 kHz
Current Rating (Max)	1.3A
DC Resistance (DCR) (Max)	240mOhm
Voltage Rating - AC	250V
Temperature Range - Operating	-25°C ~ 120°C
Mounting Type	Through Hole
Height (Max)	0.531" (13.50mm)
Package / Case	Vertical, 4 PC Pin
Base Product Number	SSR10HS
Other Names	399-19021,UALR10HS130750
Standard Package	300
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1276547-SSR10HS-13075
Ultra Librarian 3D Model	Ultra Librarian SSR10HS-13075 CAD Model

Description

The KEMET SSR10HS-13075 is a common mode choke used in filters for electronic devices.

Manufacturer: KEMET
Product Name: SSR10HS-13075
Maximum Current Rating: 1.3A
Voltage Rating: 250V AC
Package: Tray
Standard Package: 300
Mounting: Through-hole
Package/Case: Vertical, 4 PC pin
Height: 0.531 inches or 13.50mm
Lines: 2
Inductance: 7.5 mH @ 10 kHz
DC Resistance (DCR): 240mOhm
Temperature Range: -25°C to 120°C
ECCN: EAR99
REACH: Unaffected
