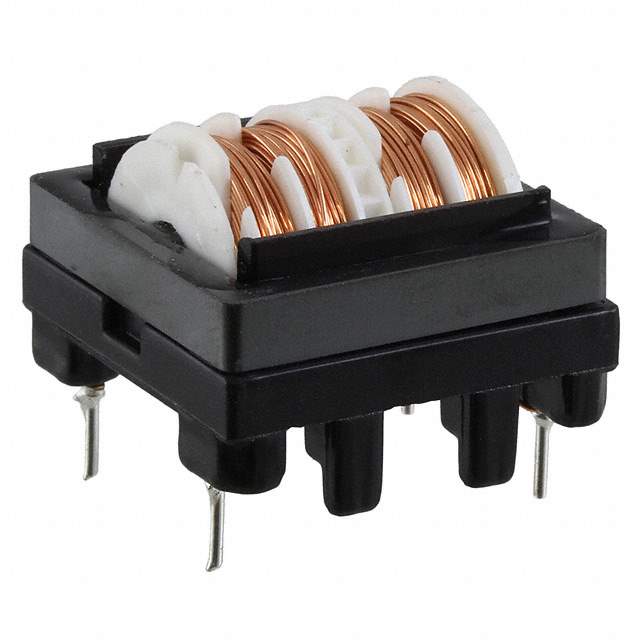

SS24H-R05600-CH Real Image
Same model may have multiple batches, images only for reference.

SS24H-R05600-CH

Part No SS24H-R05600-CH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 60 mH @ 1 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 1.75Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.024" L x 1.024" W (26.00mm x 26.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS24H
Other Names 399-10749,UAL24HR05600CH
Standard Package 300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276750-SS24H-R05600-CH
Ultra Librarian 3D Model Ultra Librarian SS24H-R05600-CH CAD Model

Description

The KEMET SS series common mode choke is a power line filter type component that comes in a through hole mounting type.

  • Voltage Rating: 250V
  • Maximum Current Rating: 500mA
  • Inductance: 60mH @ 1kHz
  • DC Resistance: 1.75Ohm
  • Package/Case: vertical, 4 PC pin
  • Standard Package: 300
  • Temperature Range: -25°C to 120°C
  • Dimension: 1.024" L x 1.024" W (26.00mm x 26.00mm)
