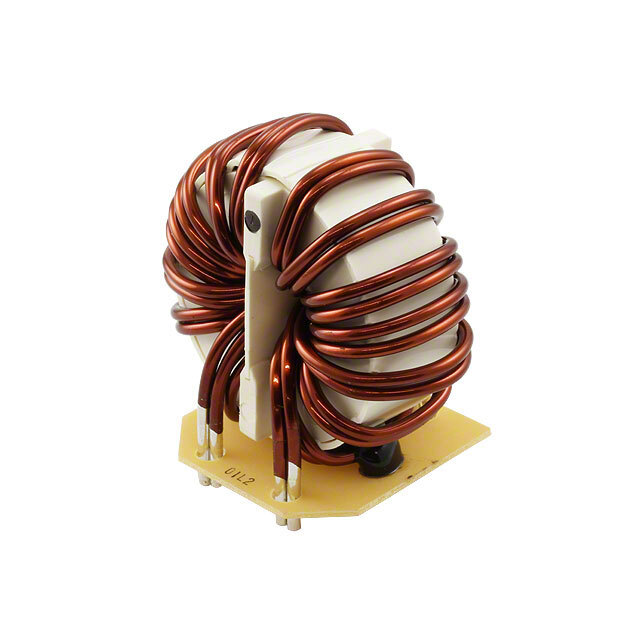

Same model may have multiple batches, images only for reference.
SS11VL-08083 Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SS11VL-08083

Part No SS11VL-08083
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 8.3MH 800MA 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 8.3 mH @ 1 kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 740mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Size / Dimension 0.866" L x 0.571" W (22.00mm x 14.50mm)
Height (Max) 0.768" (19.50mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530638-SS11VL-08083
Ultra Librarian 3D Model Ultra Librarian SS11VL-08083 CAD Model
