Same model may have multiple batches, images only for reference.

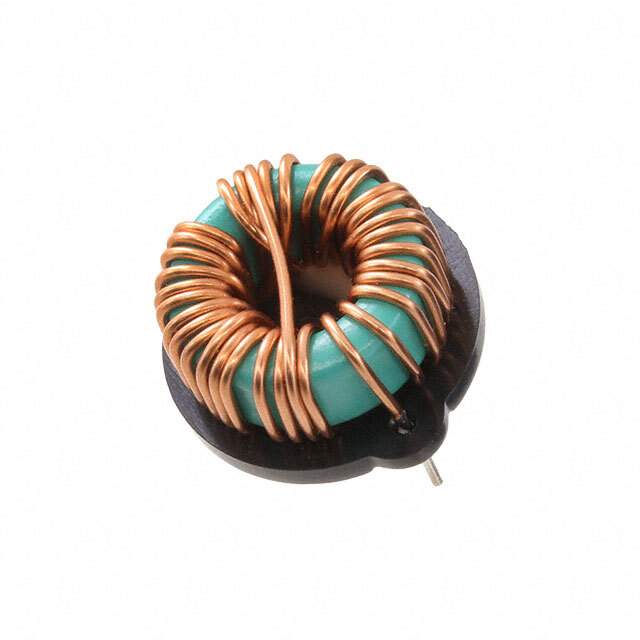

SN8S-30P2 Real Image
Same model may have multiple batches, images only for reference.

SN8S-30P2

Part No SN8S-30P2
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN8S-30P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Package Bulk
Filter Type Power Line
Number of Lines 2
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.748" Dia (19.00mm)
Height (Max) 0.413" (10.50mm)
Package / Case Horizontal, 2 PC Pin
Base Product Number SN8S
Other Names UALSN8S30P2000,399-20604
Standard Package 1,600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276838-SN8S-30P2
Ultra Librarian 3D Model Ultra Librarian SN8S-30P2 CAD Model

Description

The SN8S-30P2 is a common mode choke from KEMET that is designed to provide high performance and reliability. It is suitable for use in power line filtering applications and has a height of 0.413". The SN8S-30P2 is available in a bulk package and is ECCN EAR99 compliant.
