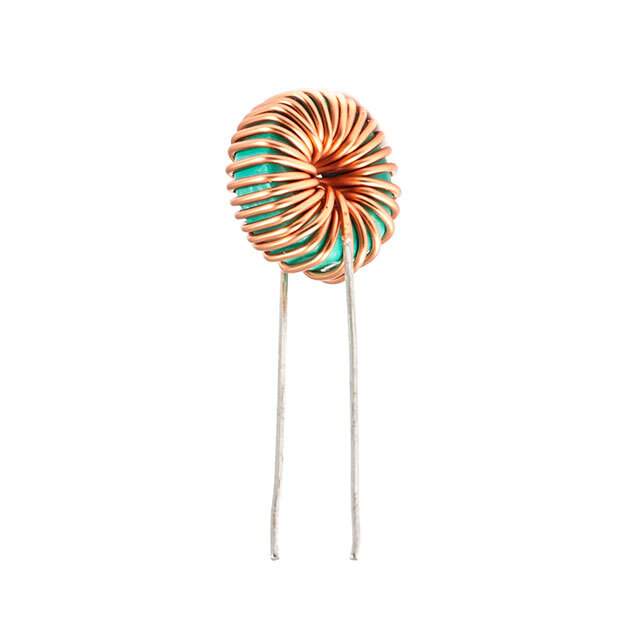

SN8S-300 Real Image
Same model may have multiple batches, images only for reference.

SN8S-300

Part No SN8S-300
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN8S-300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 26 µH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 42mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, No Base, 2 PC Pin
Base Product Number SN8S
Other Names 399-20550,UALSN8S3000000
Standard Package 2,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276845-SN8S-300
Ultra Librarian 3D Model Ultra Librarian SN8S-300 CAD Model

Description

The Kemet 1276845-SN8S-300 is a common mode choke in the SN series.

  • Filter: Power Line Filter
  • Height (Max): 0.689" (17.50mm)
  • Lines: 2
  • Inductance: 26 µH @ 100 kHz
  • DC Resistance (DCR): 42mOhm (Max)
  • Maximum Current Rating: 2A
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, No Base, 2 PC Pin
  • Temperature Range: -25°C to 105°C
  • MSL Level: Not Applicable
  • HTSUS: 8504.50.8000
  • Manufacturer: Kemet
  • Other Names: 399-20550 and UALSN8S3000000
  • Base Product Number: SN8S
  • Approval Agency: None
