Same model may have multiple batches, images only for reference.

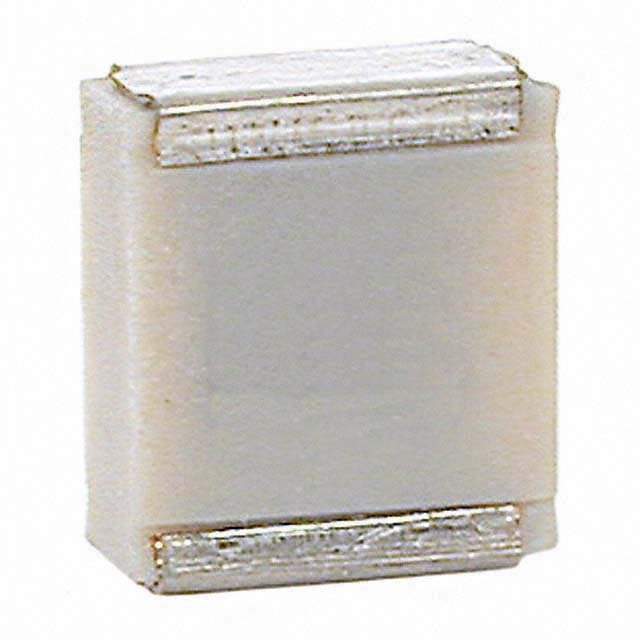

SMC16.5225J50C31TR24 Real Image
Same model may have multiple batches, images only for reference.

SMC16.5225J50C31TR24

Part No SMC16.5225J50C31TR24
Manufacturer Kemet
Catalog Film Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series SMC
Package Tape & Reel
Capacitance 2.2 µF
Tolerance ±5%
Voltage Rating - AC 30V
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 6560 (165150 Metric)
Dimension 0.650" L x 0.591" W (16.50mm x 15.00mm)
Height - Seated (Max) 0.283" (7.20mm)
Termination Solder Pads
Applications General Purpose
Features High Temperature
Base Product Number SMC16.5
Other Names F125ZS225J050V,399-12921-1,399-12921-2,399-12921-6
Standard Package 500
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1302412-SMC16.5225J50C31TR24
Ultra Librarian 3D Model Ultra Librarian SMC16.5225J50C31TR24 CAD Model

Description

The KEMET SMC16.5225J50C31TR24 is a high-temperature film capacitor with a capacitance of 2.2μF and a voltage rating of 30VAC/50VDC.

  • Capacitance: 2.2μF
  • Voltage Rating: 30VAC/50VDC
  • Mounting: Surface mount
  • Tolerance: ±5%
  • Packaging: Tape and reel
  • Height: 7.20mm
  • Dimension: 0.650 x 0.591 inches
  • Dielectric Material: polyphenylene sulfide (PPS)
  • Dielectric Detail: metallized
  • Temperature Range: -55°C to 125°C

The capacitor is suitable for use in applications that require a film capacitor.
