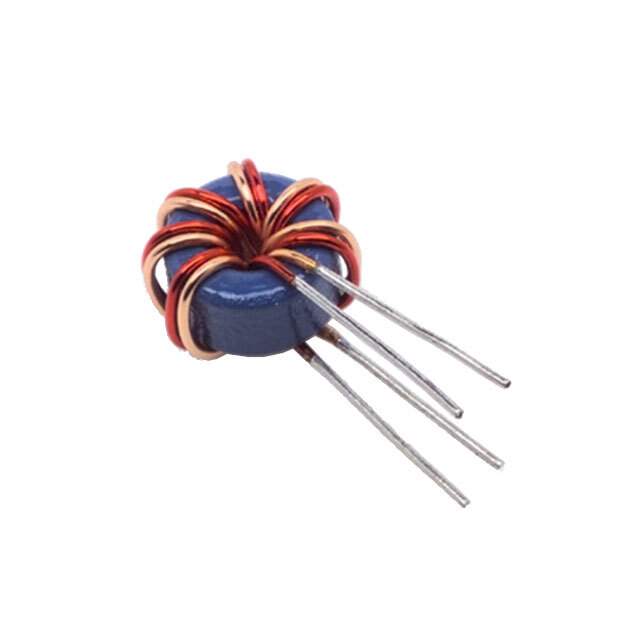

SHO-501 Real Image
Same model may have multiple batches, images only for reference.

SHO-501

Part No SHO-501
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SHO
Package Bulk
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 105mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C ~ 80°C
Mounting Type Through Hole
Height (Max) 0.244" (6.20mm)
Package / Case Vertical, No Base, 4 PC Pin
Other Names 399-19676,UDLSHO05010000
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276848-SHO-501
Ultra Librarian 3D Model Ultra Librarian SHO-501 CAD Model

Description

The KEMET SHO series common mode choke is a high-performance power line filter designed to reduce electromagnetic interference (EMI) in electronic circuits.

  • Maximum Current Rating: 800mA
  • DC Resistance (DCR): 105mOhm
  • Maximum Voltage Rating: 50V
  • Mounting: Through Hole
  • Package: Vertical, No Base, 4 PC Pin
  • Temperature Range: -25°C to 80°C
