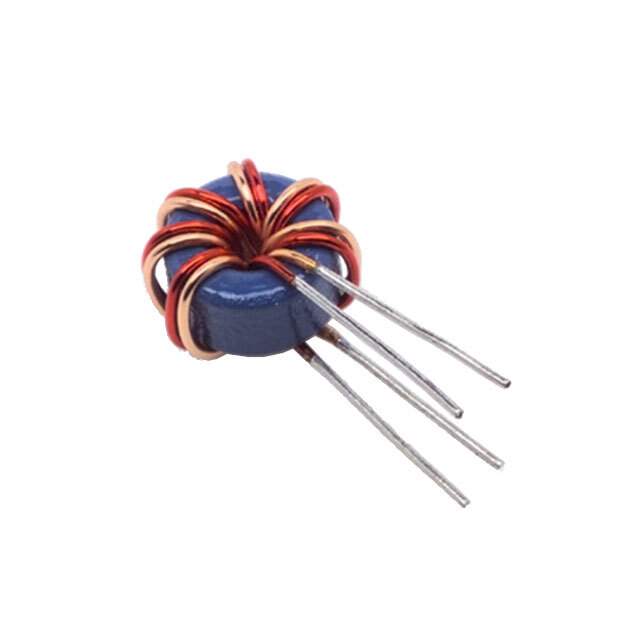

SHO-402 Real Image
Same model may have multiple batches, images only for reference.

SHO-402

Part No SHO-402
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SHO
Package Bulk
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 120mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C ~ 80°C
Mounting Type Through Hole
Dimension 0.295" Dia (7.50mm)
Height (Max) 0.295" (7.50mm)
Package / Case Vertical, No Base, 4 PC Pin
Other Names UDLSHO04020000,399-19675
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276847-SHO-402
Ultra Librarian 3D Model Ultra Librarian SHO-402 CAD Model

Description

The Kemet SHO-402 is a common mode choke filter designed for use in electronic circuits.

  • Voltage Rating: 50V DC
  • Maximum Current Rating: 800mA
  • Package: Vertical, No Base, 4 PC Pin
  • Height: 0.295" (7.50mm)
  • Temperature Range: -25°C to 80°C
