Same model may have multiple batches, images only for reference.

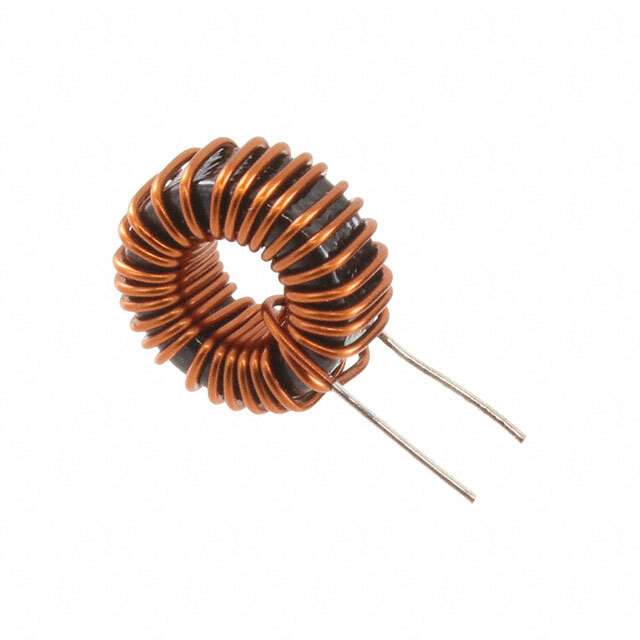

SHBC24N-2R3A0104V Real Image
Same model may have multiple batches, images only for reference.

SHBC24N-2R3A0104V

Part No SHBC24N-2R3A0104V
Manufacturer Kemet
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr KEMET
Series SHBC
Package Bulk
Type Toroidal
Material - Core Alloy Powder
Inductance 104 µH
Tolerance ±20%
Current Rating (Amps) 20 A
Shielding Unshielded
DC Resistance (DCR) 10.4mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Supplier Device Package Radial
Dimension 1.949" Dia (49.50mm)
Height - Seated (Max) 1.949" (49.50mm)
Base Product Number SHBC24N
Other Names 399-19151,UALS4N2R3A0104
Standard Package 60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272750-SHBC24N-2R3A0104V
Ultra Librarian 3D Model Ultra Librarian SHBC24N-2R3A0104V CAD Model

Description

The SHBC series of toroidal inductors from KEMET are fixed inductors used in inductors, coils, and chokes.

  • Package: Bulk
  • Standard Package: 60
  • Shielding: Unshielded
  • Inductance: 104 µH
  • Tolerance: ±20%
  • Material-Core: Alloy powder
  • Mounting Type: Through hole
  • Package/Case: Radial, vertical (open)
  • Supplier Device Package: Radial
  • Operating Temperature: -40°C to 125°C
  • Dimension: 1.949" Dia (49.50mm)
  • ECCN: EAR99
  • Current Rating: 20 A
  • Inductance Frequency-Test: 100 kHz
  • REACH Status: REACH unaffected
  • HTSUS: 8504.50.8000
  • Other Names: 399-19151 and UALS4N2R3A0104
  • Base Product Number: SHBC24N
