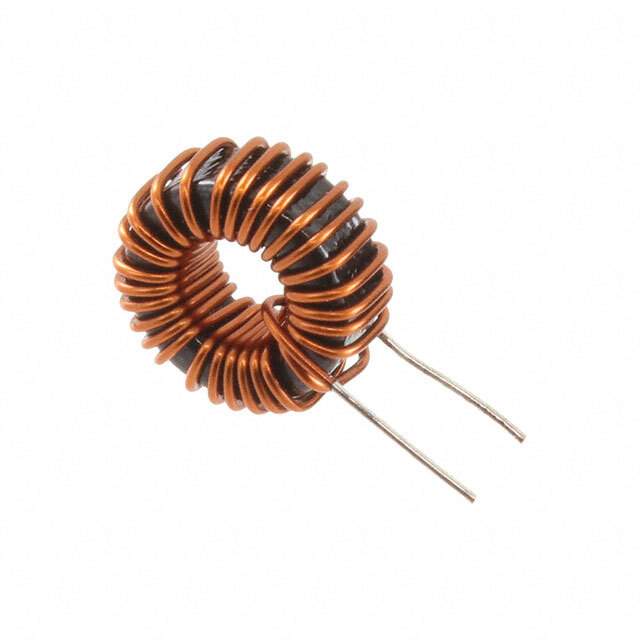

SHBC10-0R8A0068V Real Image
Same model may have multiple batches, images only for reference.

SHBC10-0R8A0068V

Part No SHBC10-0R8A0068V
Manufacturer Kemet
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr KEMET
Series SHBC
Package Bulk
Type Toroidal
Material - Core Alloy Powder
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Shielding Unshielded
DC Resistance (DCR) 42.3mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Supplier Device Package Radial
Dimension 0.846" Dia (21.50mm)
Height - Seated (Max) 0.846" (21.50mm)
Base Product Number SHBC10
Other Names 399-19135,UALS100R8A0068
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272734-SHBC10-0R8A0068V
Ultra Librarian 3D Model Ultra Librarian SHBC10-0R8A0068V CAD Model

Description

The KEMET SHBC10-0R8A0068V is a toroidal fixed inductor with an unshielded package. It has an inductance of 68 µH and a tolerance of ±20%. The DC resistance is 42.3mOhm maximum and the current rating is 3Amps. It is made of alloy powder core material and has a radial, vertical (open) package/case. The height seated (max) is 0.846 inches (21.50mm) and the dimension is 0.846 inches diameter (21.50mm). The operating temperature range is -40°C to 125°C. This product is supplied in bulk packages, and the standard package is 240.
