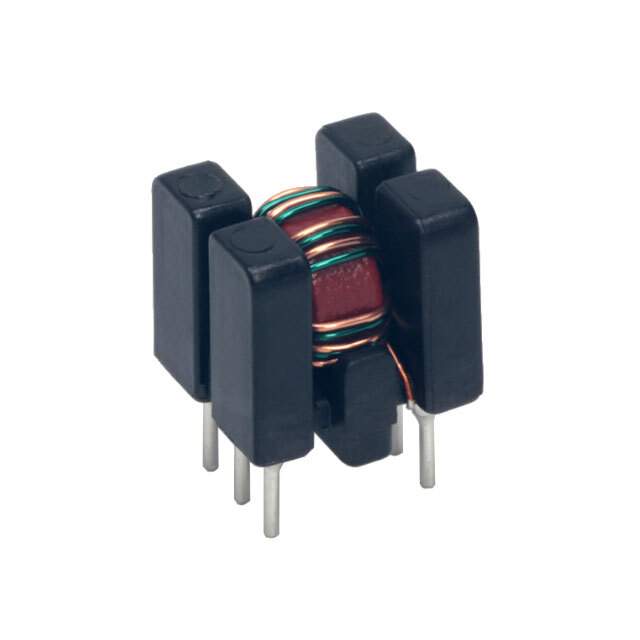

SH-432 Real Image
Same model may have multiple batches, images only for reference.

SH-432

Part No SH-432
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SH
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 30 µH @ 100 kHz
Current Rating (Max) 2.4A
DC Resistance (DCR) (Max) 51mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C ~ 60°C
Mounting Type Through Hole
Dimension 0.394" L x 0.354" W (10.00mm x 9.00mm)
Height (Max) 0.413" (10.50mm)
Package / Case Vertical, 6 PC Pin
Other Names 399-19668,UDLSH004320000
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276853-SH-432
Ultra Librarian 3D Model Ultra Librarian SH-432 CAD Model

Description

The KEMET 1276853-SH-432 is a common mode choke filter with a current rating of 2.4A.

  • Filter Type: Power Line
  • Lines: 2
  • Inductance: 30 µH @ 100 kHz
  • DC Resistance: 51mOhm
  • Mounting: Through Hole
  • Package/Case: Vertical, 6 PC Pin
  • Temperature Range: -25°C to 60°C
  • Dimension: 0.394" L x 0.354" W (10.00mm x 9.00mm)
  • ECCN: EAR99
  • REACH: Unaffected
