Same model may have multiple batches, images only for reference.

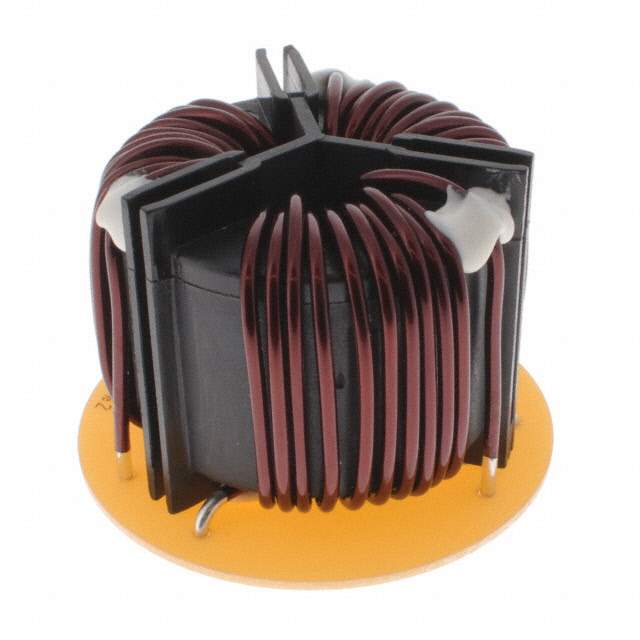

SCR47B-200-S2R0A025JH-P Real Image
Same model may have multiple batches, images only for reference.

SCR47B-200-S2R0A025JH-P

Part No SCR47B-200-S2R0A025JH-P
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 2.5 mH @ 10 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 7.8mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 2.756" Dia (70.00mm)
Height (Max) 1.890" (48.00mm)
Package / Case Horizontal, 6 PC Pin
Base Product Number SCR47B
Other Names UALID2R0A025JH,399-SCR47B-200-S2R0A025JH-P
Standard Package 27
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276866-SCR47B-200-S2R0A025JH-P
Ultra Librarian 3D Model Ultra Librarian SCR47B-200-S2R0A025JH-P CAD Model

Description

The KEMET SCR47B-200-S2R0A025JH-P is a common mode choke filter suitable for power line applications.

  • Manufacturer:KEMET
  • Voltage Rating (AC/DC): 250V
  • Current Rating: 20A
  • Height: 1.890" (48.00mm)
  • Diameter: 2.756" (70.00mm)
  • Standard Package: 27
  • Mounting Type: Through-Hole
  • Inductance: 2.5 mH @ 10 kHz
  • DC Resistance: 7.8mOhm
  • Temperature Range: 25°C to 120°C
  • RoHS Compliant: Yes
