Same model may have multiple batches, images only for reference.

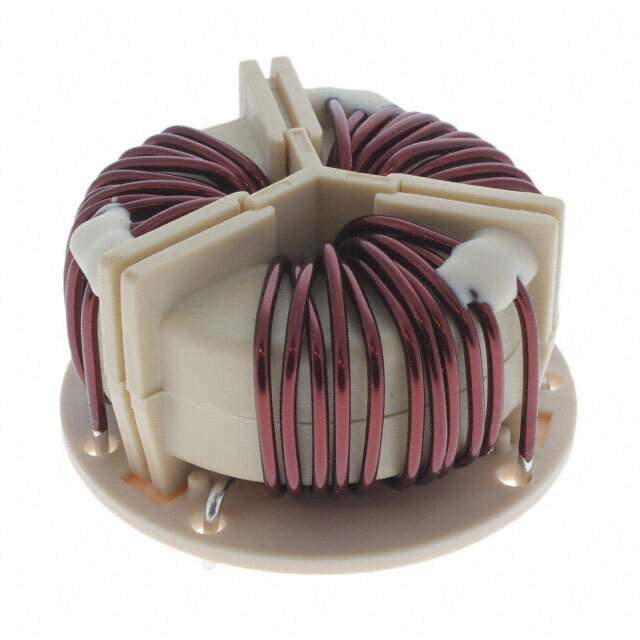

SCR38C-130-S1R4A015JH Real Image
Same model may have multiple batches, images only for reference.

SCR38C-130-S1R4A015JH

Part No SCR38C-130-S1R4A015JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 1.5 mH @ 10 kHz
Current Rating (Max) 13A
Voltage Rating - DC 500V
Voltage Rating - AC 500V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.969" Dia (50.00mm)
Height (Max) 1.102" (28.00mm)
Package / Case Horizontal, 6 PC Pin
Base Product Number SCR38C
Other Names 399-20214,UALG11R4A015JH
Standard Package 60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276878-SCR38C-130-S1R4A015JH
Ultra Librarian 3D Model Ultra Librarian SCR38C-130-S1R4A015JH CAD Model

Description

The KEMET 1276878-SCR38C-130-S1R4A015JH Common Mode Choke is a power line filter with a maximum current rating of 13A and a voltage rating of 500V AC/DC.

  • Manufacturer:KEMET
  • Filter Type: Power Line
  • Maximum Current Rating: 13A
  • Voltage Rating (AC/DC): 500V AC/DC
  • Maximum DC Resistance: 30mOhm
  • Mounting: Through-Hole
  • Package: Bulk
  • Pin Configuration: Horizontal, 6 PC pin
  • Lines: 3
  • Height: 1.102" (28.00mm)
  • Operating Temperature Range: -25°C to 120°C
  • Series: SCR
  • Inductance: 1.5 mH @ 10 kHz
