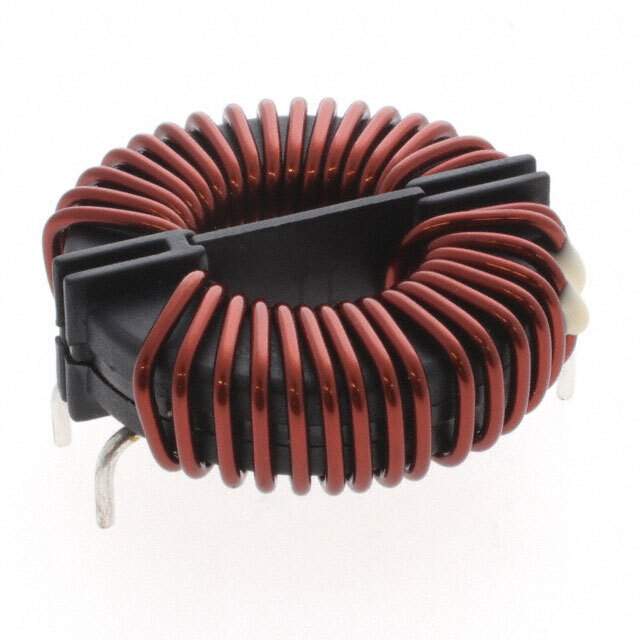

SCR31HA-120-1R3A012H Real Image
Same model may have multiple batches, images only for reference.

SCR31HA-120-1R3A012H

Part No SCR31HA-120-1R3A012H
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.2 mH @ 10 kHz
Current Rating (Max) 12A
DC Resistance (DCR) (Max) 9.6mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.535" L x 1.496" W (39.00mm x 38.00mm)
Height (Max) 0.610" (15.50mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SCR31HA
Other Names 399-SCR31HA-120-1R3A012H,UALF41R3A012JH
Standard Package 125
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276876-SCR31HA-120-1R3A012H
Ultra Librarian 3D Model Ultra Librarian SCR31HA-120-1R3A012H CAD Model

Description

The SCR31HA-120-1R3A012H is a common mode choke from KEMET's SCR series.

  • Manufacturer:KEMET
  • Series: SCR
  • Filter Type: Power Line
  • Application: AC and DC applications
  • Maximum Current Rating: 12A
  • Voltage Rating (AC/DC): 250V AC/DC
  • Mounting Type: Through-Hole
  • Package: Horizontal, no base, 4 PC pin
  • Height: 15.50mm
  • Dimension: 39.00mm x 38.00mm
  • Temperature Range: 25°C to 120°C
  • Inductance: 1.2 mH @ 10 kHz
  • ECCN: EAR99
  • REACH: Unaffected
