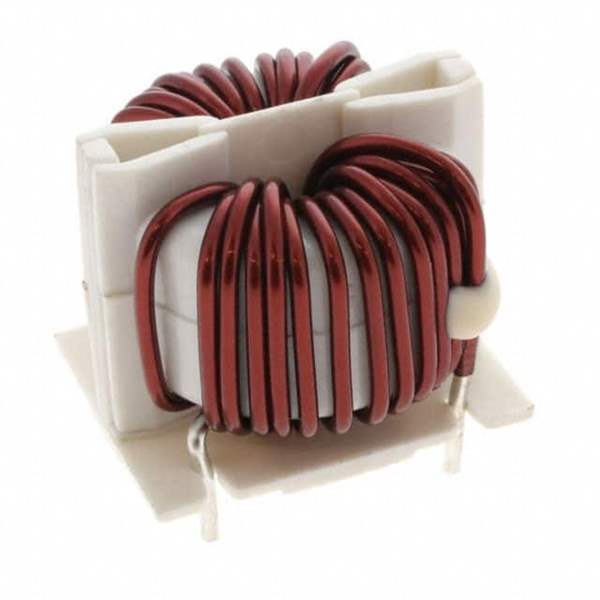

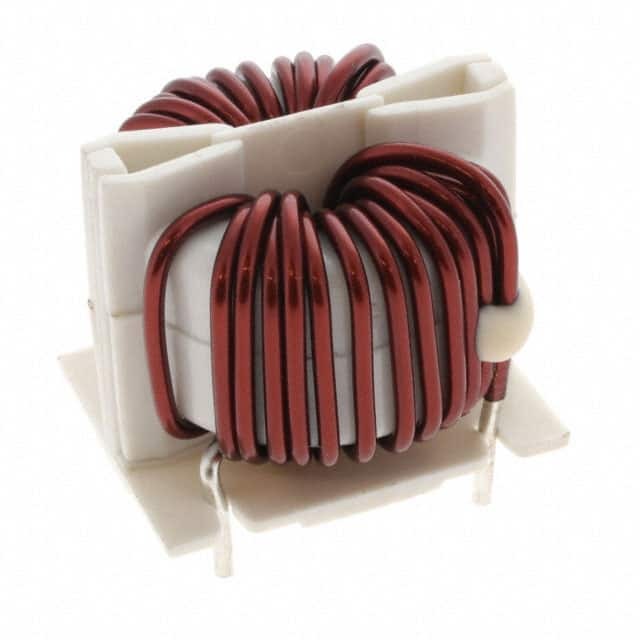

SCR-020-0R55A250JH Kemet
Same model may have multiple batches, images only for reference.

SCR-020-0R55A250JH

Part No SCR-020-0R55A250JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 25 mH @ 10 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 200mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.142" L x 1.063" W (29.00mm x 27.00mm)
Height (Max) 0.906" (23.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCR-020
Other Names UAL20R55A250JH,399-10768
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276892-SCR-020-0R55A250JH
Ultra Librarian 3D Model Ultra Librarian SCR-020-0R55A250JH CAD Model

Description

The SCR-020-0R55A250JH from KEMET is a common mode choke filter.

  • Manufacturer: KEMET
  • Product Name: SCR-020-0R55A250JH
  • Maximum DC Resistance: 200mOhm
  • Inductance: 25mH @ 10kHz
  • Voltage Rating: 250V AC/DC
  • Current Rating: 2A
  • Mounting Type: Through-hole
  • Package/Case: Horizontal, 4 PC pin
  • Temperature Range: -25°C to 120°C
  • RoHS: Compliant
  • Standard Package: 200 pieces
