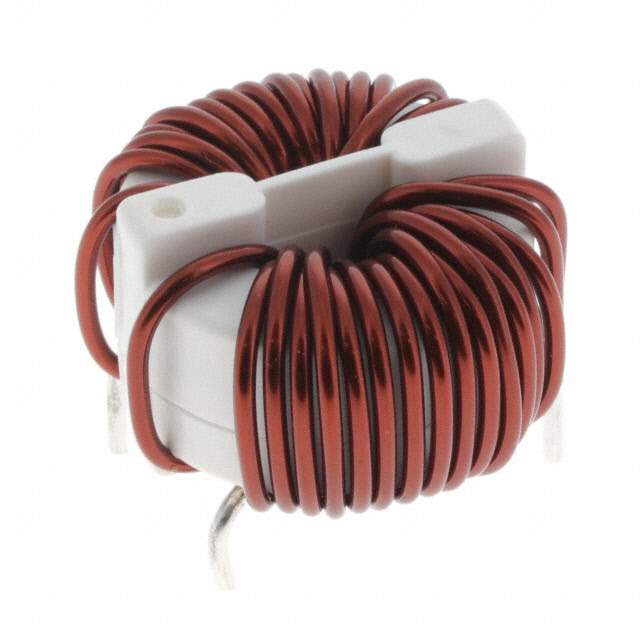

SC22-08-170 Real Image
Same model may have multiple batches, images only for reference.

SC22-08-170

Part No SC22-08-170
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.7 mH @ 10 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 20mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.181" Dia (30.00mm)
Height (Max) 0.748" (19.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC22-08
Other Names UALSC220817000,399-SC22-08-170
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277082-SC22-08-170
Ultra Librarian 3D Model Ultra Librarian SC22-08-170 CAD Model

Description

The KEMET SC series common mode choke is a power line filter designed to suppress electromagnetic interference (EMI) in electronic circuits.

  • Voltage Rating: 250V AC and DC
  • Current Rating: 8A
  • Inductance: 1.7 mH @ 10 kHz
  • DC Resistance: 20mOhm
  • Height: 19.00mm
  • Package: Bulk
  • Mounting Type: Through hole
  • Temperature Range: -25°C to 120°C
