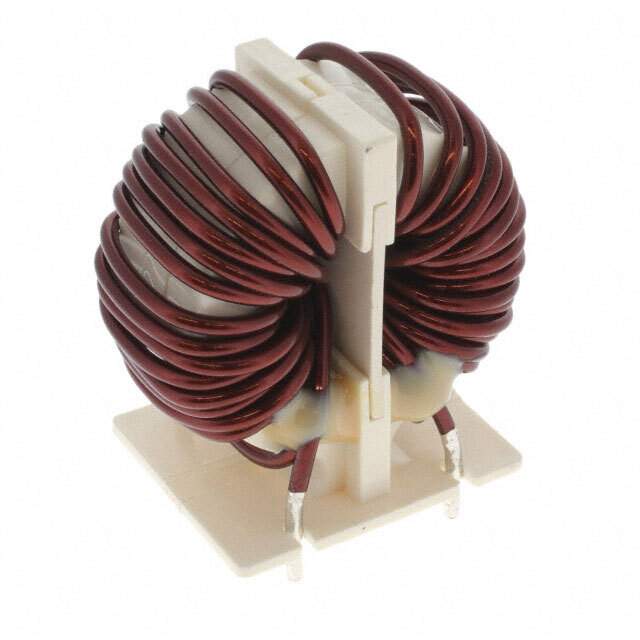

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5 mH @ 10 kHz
Current Rating (Max) 18A
DC Resistance (DCR) (Max) 8mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.732" L x 1.181" W (44.00mm x 30.00mm)
Height (Max) 1.732" (44.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-18
Other Names 399-SC-18-E15J,UALSC18E15J000
Standard Package 60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277010-SC-18-E15J
Ultra Librarian 3D Model Ultra Librarian SC-18-E15J CAD Model

Description

The SC-18-E15J is a common mode choke from KEMET's SC series.

  • Mounting Type: Through-hole
  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 18A
  • Height: 1.732 inches
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: 25°C ~ 120°C
  • Number of Lines: 2
  • Inductance: 1.5 mH @ 10 kHz
  • DC Resistance: 8mOhm
  • Packaging: Tray
  • Dimension Length: 1.732 inches
  • Dimension Width: 1.181 inches
