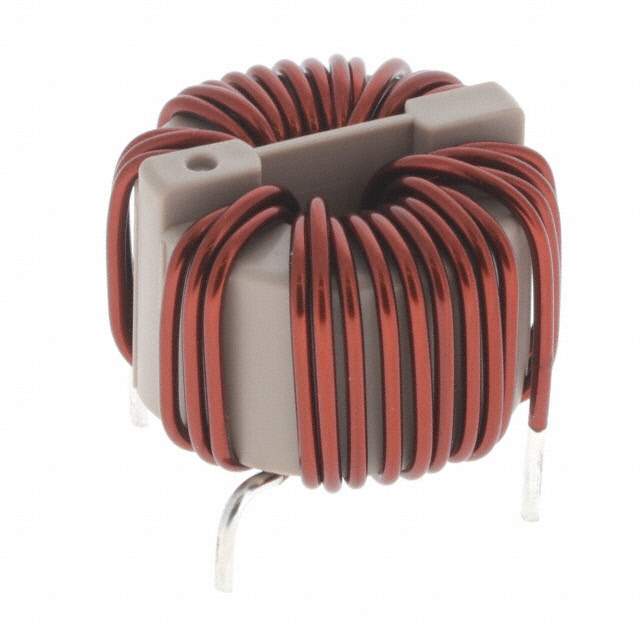

SC-15-E110H Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.1 mH @ 10 kHz
Current Rating (Max) 15A
DC Resistance (DCR) (Max) 16.5mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.417" Dia (36.00mm)
Height (Max) 0.984" (25.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-15
Other Names 399-SC-15-E110H,UALSC15E110H00
Standard Package 150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277083-SC-15-E110H
Ultra Librarian 3D Model Ultra Librarian SC-15-E110H CAD Model

Description

The KEMET SC-15-E110H is a common mode choke used in power line filters.

  • Voltage Rating: 250V AC and 250V DC
  • Current Rating: 15A
  • Series: SC series
  • Win Source Part Number: 1277083-SC-15-E110H
  • Temperature Range: -25°C to 120°C
  • Mounting: Through a hole
  • Package: Horizontal with no base and 4 PC pins
  • Dimension: 1.417" Dia (36.00mm)
