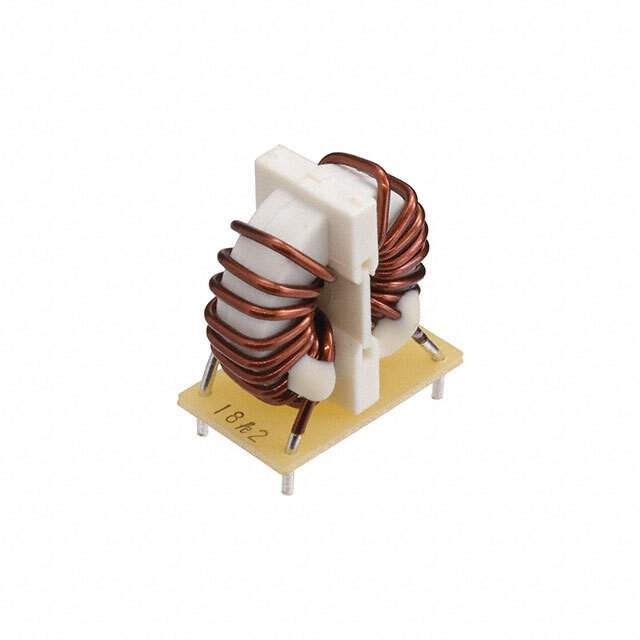

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 350 µH @ 10 kHz
Current Rating (Max) 12A
DC Resistance (DCR) (Max) 8mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.630" W (25.00mm x 16.00mm)
Height (Max) 1.004" (25.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-12
Other Names 399-SC-12-E035J,UALSC12E035J00
Standard Package 150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276967-SC-12-E035J
Ultra Librarian 3D Model Ultra Librarian SC-12-E035J CAD Model

Description

The SC series common mode choke is an ideal choice for power line filtering applications.

  • Current Rating: 12A (maximum)
  • Voltage Rating: 250V AC/DC
  • Number of Lines: 2
  • Height: 1.004 inches
  • Package: Tray
  • Inductance @ Frequency: 350 µH @ 10 kHz
  • DC Resistance (DCR): 8mOhm
  • Mounting: Through hole
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: 25°C to 120°C
  • Manufacturer: KEMET
  • Base Product Number: SC-12
