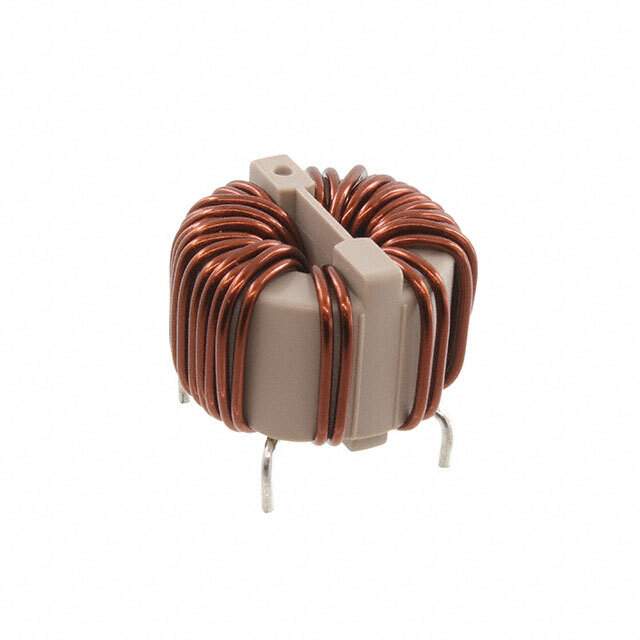

SC-10-E200H Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 10 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 20mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" Dia (34.00mm)
Height (Max) 0.945" (24.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-10
Other Names 399-SC-10-E200H,UALSC10E200H00
Standard Package 150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277071-SC-10-E200H
Ultra Librarian 3D Model Ultra Librarian SC-10-E200H CAD Model

Description

The KEMET SC-10-E200H is a common mode choke filter designed for power lines.

  • Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 10A
  • Height: 0.945 inches (24.00mm)
  • Mounting Type: Through-hole
  • Inductance: 2mH @ 10kHz
  • Package: Bulk
  • Standard Package: 150
  • Temperature Range: -25°C to 120°C
  • ECCN: EAR99
