Same model may have multiple batches, images only for reference.

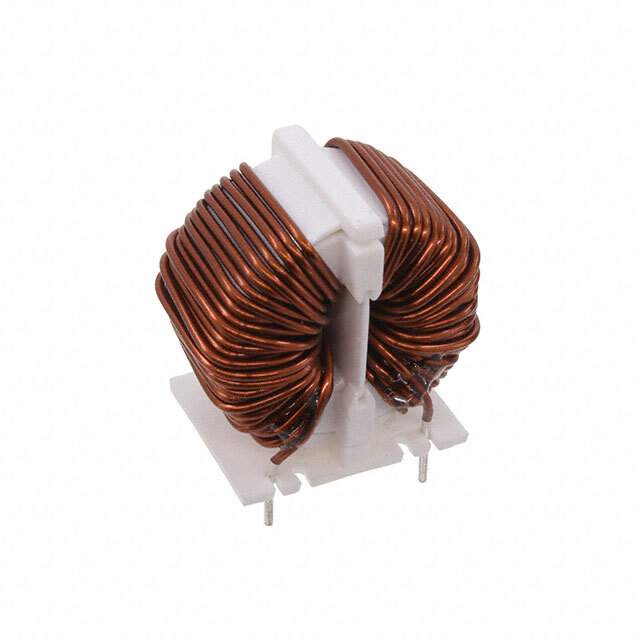

SC-06-35J Real Image
Same model may have multiple batches, images only for reference.

SC-06-35J

Part No SC-06-35J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.5 mH @ 10 kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 50mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" L x 0.945" W (34.00mm x 24.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-06
Other Names UALSC0635J0000,399-SC-06-35J
Standard Package 180
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276972-SC-06-35J
Ultra Librarian 3D Model Ultra Librarian SC-06-35J CAD Model

Description

The SC-06-35J is a common mode choke filter manufactured by KEMET.

  • Win Source part number: 1276972-SC-06-35J
  • Type: Power line filter
  • Voltage Rating: 250V AC and 250V DC
  • Maximum Current Rating: 6A
  • Package: Tray
  • Standard Package: 180 units
  • Height: 33.00mm
  • Dimension: 34.00mm x 24.00mm
  • Lines: 2
  • Inductance: 3.5mH @ 10kHz
  • DC resistance (DCR): 50mOhm
  • Mounting type: Through-hole
  • Package/case: Vertical, 4 PC pin
  • Temperature range: Between 25°C and 120°C
