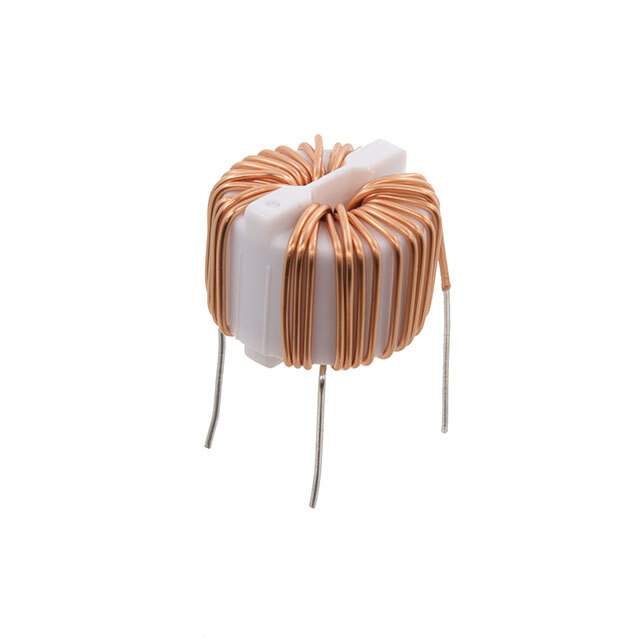

SC-05-103 Real Image
Same model may have multiple batches, images only for reference.

SC-05-103

Part No SC-05-103
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 50mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.984" Dia (25.00mm)
Height (Max) 0.728" (18.50mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-05
Other Names 399-SC-05-103,UALSC051030000
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277084-SC-05-103
Ultra Librarian 3D Model Ultra Librarian SC-05-103 CAD Model

Description

The KEMET SC-05-103 is a common mode choke filter designed to reduce electromagnetic interference (EMI) in power line applications.

  • Maximum AC and DC Voltage Rating: 250V
  • Maximum Current Rating: 5A
  • Package Type: Bulk
  • Mounting Type: Through Hole
  • Standard Package: 500
  • Filter Type: Power Line
  • Height: 0.728 inches
  • Dimension: 0.984 inches in diameter
  • Temperature Range: -25°C to 105°C
  • Inductance: 1mH @ 100kHz
  • DC Resistance: 50mOhm
