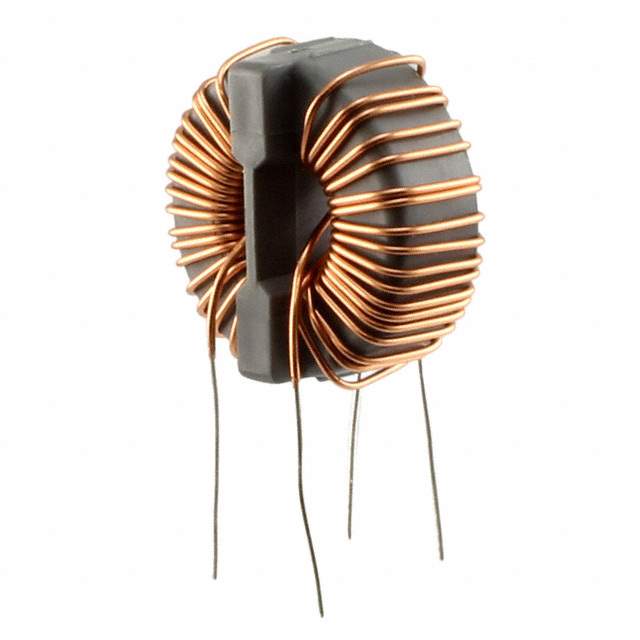

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 9 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 130mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" Dia (23.50mm)
Height (Max) 0.925" (23.50mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-03
Other Names UALSC03E900000,399-SC-03-E900
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277023-SC-03-E900
Ultra Librarian 3D Model Ultra Librarian SC-03-E900 CAD Model

Description

The KEMET SC-03-E900 common mode choke is designed for power line filtering applications.

  • Voltage Rating: 250VAC/250VDC
  • Current Rating: 3A
  • Diameter: 0.925" (23.50mm)
  • Mounting Technology: Through-hole
  • Height: 0.925" (23.50mm)
  • Package: Vertical, no base, 4 PC pin
  • Filter Type: Power line
  • Lines: 2
  • Inductance: 9 mH @ 10 kHz
  • DC Resistance: 130mOhm
  • ROHS Compliant: Yes
  • ECCN: EAR99
