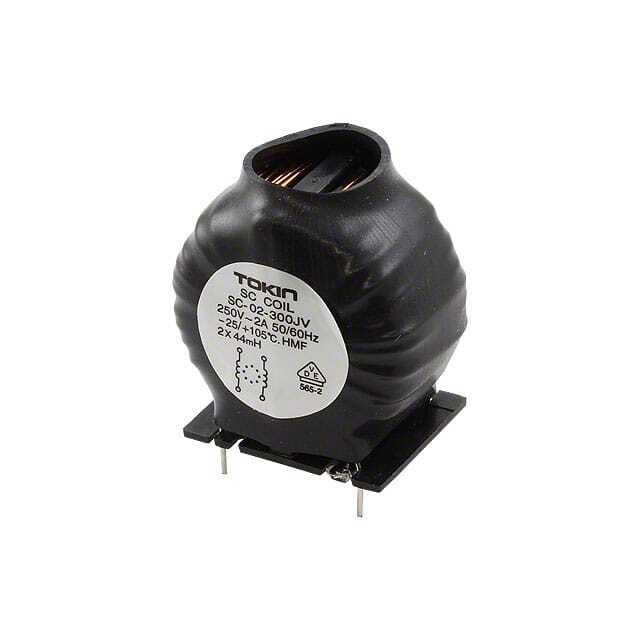

SC-02-300JV Kemet
Same model may have multiple batches, images only for reference.

SC-02-300JV

Part No SC-02-300JV
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 44 mH @ 16 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 300mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Mounting Type Through Hole
Dimension 1.378" Dia x 0.984" W (35.00mm x 25.00mm)
Height (Max) 1.575" (40.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-02
Other Names 399-10666,UALSC02300JV00
Standard Package 160
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277045-SC-02-300JV
Ultra Librarian 3D Model Ultra Librarian SC-02-300JV CAD Model

Description

The KEMET SC series common mode choke is a power line filter with a voltage rating of 250VAC/DC and a current rating of 2A. The choke has a temperature range of -55°C to 125°C and is suitable for use in applications that require a common mode filter.

  • Voltage Rating: 250VAC/DC
  • Current Rating: 2A
  • Inductance: 44mH @ 16kHz
  • DC Resistance: 300mOhm
  • Packaging: Bulk
  • Standard Package: 160
  • Height: 40.00mm
  • Diameter: 1.378 inches
  • Filter Type: Power Line
  • Lines: 2
  • Temperature Range: -55°C to 125°C
  • Mounting: Through hole
