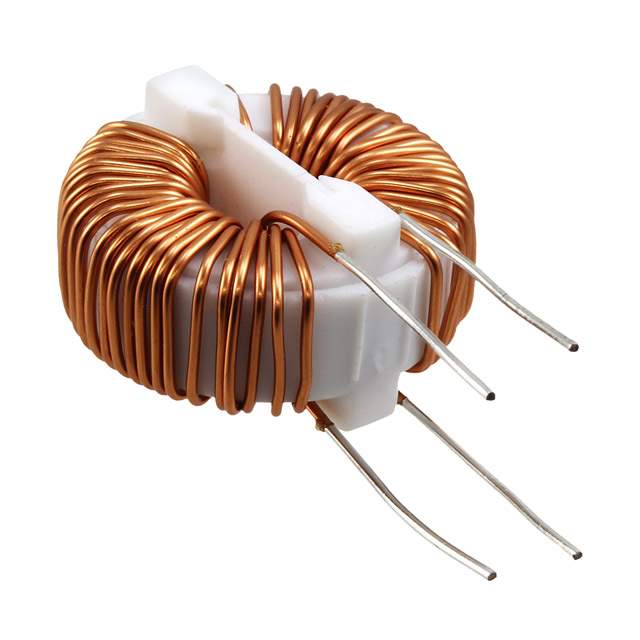

SC-02-101 Real Image
Same model may have multiple batches, images only for reference.

SC-02-101

Part No SC-02-101
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 110mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.906" Dia x 0.512" W (23.00mm x 13.00mm)
Height (Max) 0.906" (23.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-02
Other Names UALSC021010000,399-10605
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277090-SC-02-101
Ultra Librarian 3D Model Ultra Librarian SC-02-101 CAD Model

Description

The Kemet SC-02-101 is a common mode choke filter designed to reduce electromagnetic interference in power lines.

  • Voltage Rating: 250V AC/DC
  • Current Rating: 2A
  • Lines: 2
  • Inductance: 1mH @ 100 kHz
  • DC Resistance (DCR): 110mOhm
  • Temperature Range: -25°C to 105°C
  • Mounting: Through-hole
  • Package: Vertical, no base, 4 PC pin
