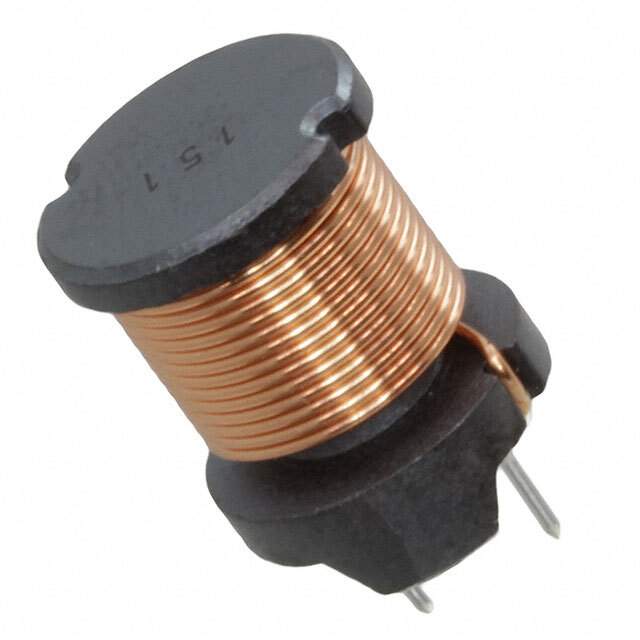

SBCP-14HY151B Real Image
Same model may have multiple batches, images only for reference.

SBCP-14HY151B

Part No SBCP-14HY151B
Manufacturer Kemet
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr KEMET
Series SBCP
Package Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±10%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 2.7A
Shielding Unshielded
DC Resistance (DCR) 200mOhm Max
Temperature Range - Operating -20°C ~ 105°C
Inductance Frequency - Test 10 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.591" (15.00mm)
Base Product Number SBCP-14HY
Other Names 399-20027,UPIO14HY151B00
Standard Package 1,500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272817-SBCP-14HY151B
Ultra Librarian 3D Model Ultra Librarian SBCP-14HY151B CAD Model

Description

The Kemet SBCP-14HY151B is a fixed inductor with an inductance of 150 µH and a current rating of 1.3 A.

  • Manufacturer: Kemet
  • Inductance: 150 µH
  • Current Rating: 1.3 A
  • Series: SBCP
  • Package Type: Bulk
  • Category: Inductors, Coils, and Chokes
  • Tolerance: ±10%
  • Material Core: ferrite
  • Dimension: 0.472" Dia (12.00mm)
  • Seated Height: 0.591" (15.00mm)
  • DC Resistance (DCR): 200mOhm Max
  • Current - Saturation (Isat): 2.7A
  • REACH: unaffected
  • HTSUS: 8504.50.8000
  • Alternative Part Number: 399-20027, UPIO14HY151B00
