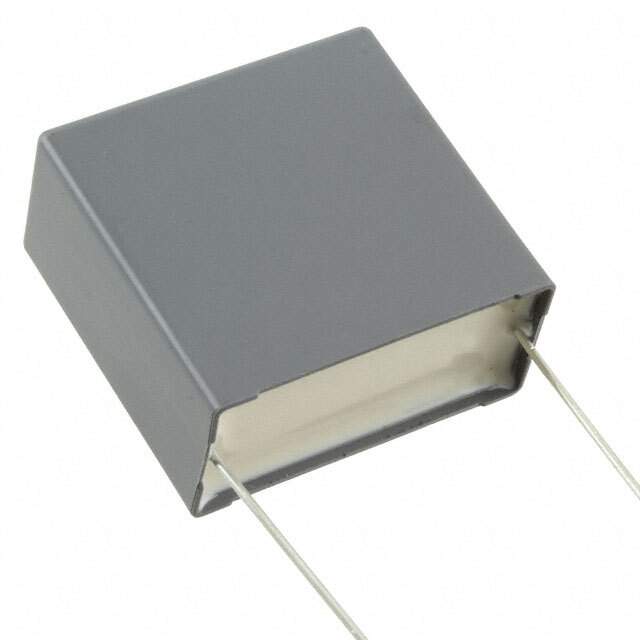

R75UR315050L4J Real Image
Same model may have multiple batches, images only for reference.

R75UR315050L4J

Part No R75UR315050L4J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.15UF 5% 2KVDC RADIAL / 0.15 µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial
Datasheet
R75UR315050L4J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series R75
Package Bulk
Capacitance 0.15 µF
Tolerance ±5%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 7.4 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.260" L x 0.945" W (32.00mm x 24.00mm)
Height - Seated (Max) 0.594" (15.10mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications High Frequency, Switching; High Pulse, DV/DT
Base Product Number R75UR
Standard Package 144
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0030
Win Source Part Number 1341431-R75UR315050L4J
Ultra Librarian 3D Model Ultra Librarian R75UR315050L4J CAD Model

Description

The R75 series film capacitor from KEMET is a high-quality component that is ideal for use in high frequency and switching applications.

  • Voltage Rating (AC): 700V
  • Voltage Rating (DC): 2000V
  • Capacitance: 0.15 µF
  • Tolerance: ±5%
  • ESR: 7.4 mOhms
  • Dielectric Material: Polypropylene (PP) and metallized
  • Mounting Type: Through-Hole
  • Package/Case: Radial
  • Operating Temperature: -55°C to 105°C
  • Packaging: Bulk
  • Standard Package: 144
