Same model may have multiple batches, images only for reference.

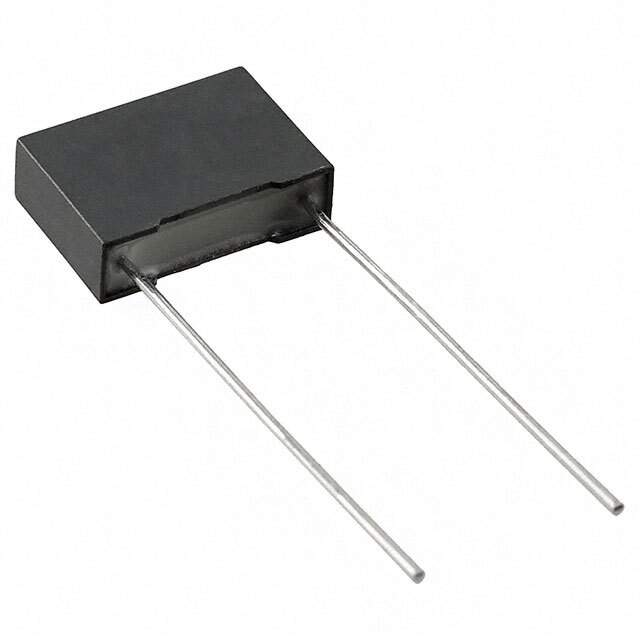

R46KF222050N0K Real Image
Same model may have multiple batches, images only for reference.

R46KF222050N0K

Part No R46KF222050N0K
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.022UF 10% 560VDC RAD
Datasheet
R46KF222050N0K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series R46
Packaging Bulk
Capacitance 0.022μF
Tolerance ±10%
Voltage Rating - AC 275V
Voltage Rating - DC 560V
Dielectric Material Polypropylene (PP), Metallized
Operating Temperature Range -40°C ~ 110°C
Mounting Style Through Hole
Package Radial
Dimension 0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Maximum) 0.358" (9.10mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 761820-R46KF222050N0K
Popularity Medium
Supply and Demand Status Limited
Family Name R.46
Introduction Date September 28, 2008
ECCN EAR99
Country of Origin Bulgaria
Halogen Free Unknown
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian R46KF222050N0K CAD Model

Description

The Kemet 761820-R46KF222050N0K is a radial type capacitor that belongs to the R46 series.

  • Voltage Rating: 275V (AC), 560V (DC)
  • Capacitance: 0.022μF
  • Tolerance: ±10%
  • Lead Spacing: 0.394" (10.00mm)
  • Height (Seated): 0.358" (9.10mm)
  • Termination: PC Pins
  • Safety Rating: X2
  • Dielectric: Polypropylene (PP), Metallized
  • Dimensions: 0.512" L x 0.157" W (13.00mm x 4.00mm)
  • Operating Temperature: -40°C to 110°C
  • Supply and Demand Status: Limited
  • Introduction Date: September 28, 2008
  • Estimated EOL Date: 2021
  • Country of Origin: Bulgaria
  • ECCN: EAR99
