Same model may have multiple batches, images only for reference.

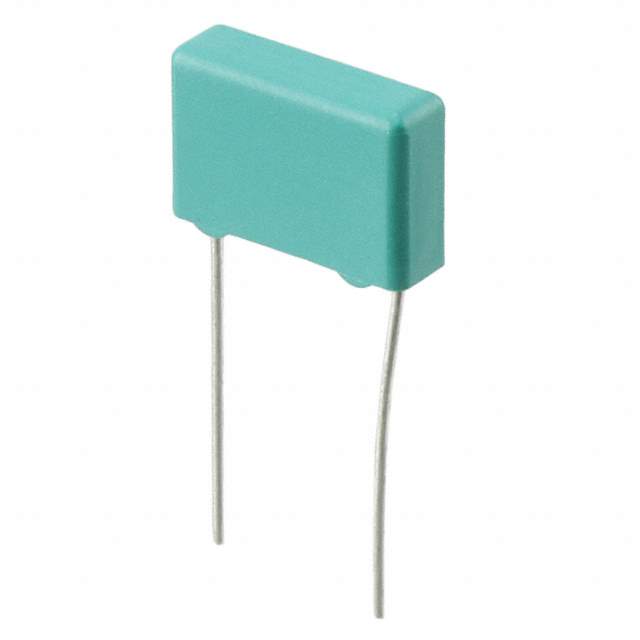

PHE850EA4100MA01R17 Real Image
Same model may have multiple batches, images only for reference.

PHE850EA4100MA01R17

Part No PHE850EA4100MA01R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1000PF 20% 1.25KVDC RAD
Datasheet
PHE850EA4100MA01R17 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 1000pF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1250V (1.25kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 110°C
Mounting Through Hole
Dimension 0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications EMI, RFI Suppression
Features Y2 Safety Rated
Win Source Part Number 1016288-PHE850EA4100MA01R17
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE850EA4100MA01R17 CAD Model

Description

The PHE850EA4100MA01R17 is a capacitor component manufactured by Kemet.

  • Capacitance: 1000pF
  • Voltage Rating: 300V (AC) and 1250V (DC)
  • Tolerance: ±20%
