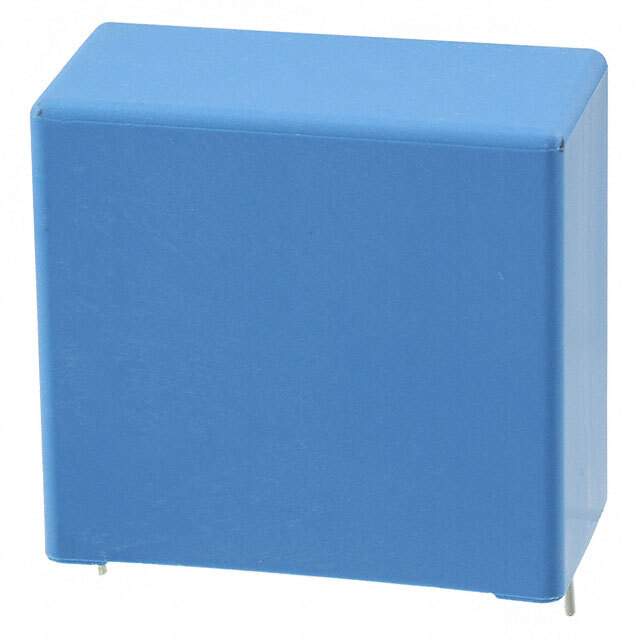

PHE844RR7220MR06 Real Image
Same model may have multiple batches, images only for reference.

PHE844RR7220MR06

Part No PHE844RR7220MR06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 2.2UF 20% 1KVDC RADIAL
Datasheet
PHE844RR7220MR06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 2.2μF
Tolerance ±20%
Voltage Rating - AC 440V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.614" L x 0.827" W (41.00mm x 21.00mm)
Height - Seated (Max) 1.496" (38.00mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications EMI, RFI Suppression
Features X1 Safety Rated
Win Source Part Number 209926-PHE844RR7220MR06
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE844RR7220MR06 CAD Model

Description

The Kemet 209926-PHE844RR7220MR06 capacitor is a bulk packaged, X1 safety rated component designed for EMI and RFI suppression.

  • Voltage Rating (AC): 440V AC
  • Voltage Rating (DC): 1000V DC
  • Mounting: Through-hole
  • Capacitance: 2.2μF
  • Tolerance: ±20%
  • Lead Spacing: 1.476" (37.50mm)
  • Dielectric Material: Polypropylene (PP), metallized
  • Height Seated (Max): 1.496" (38.00mm)
  • Temperature Range: -40°C to 105°C
  • Dimension: 1.614" L x 0.827" W (41.00mm x 21.00mm)
  • Safety Rating: X1
  • Application: EMI and RFI suppression
