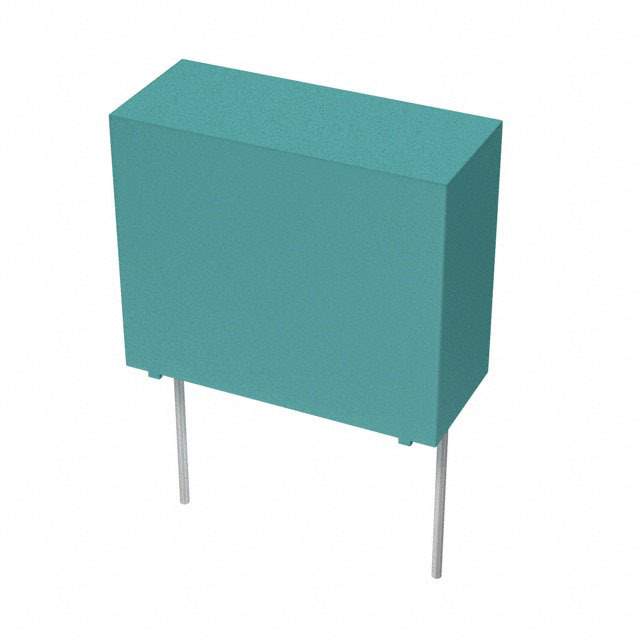

PHE840MY7100MD16R06 Real Image
Same model may have multiple batches, images only for reference.

PHE840MY7100MD16R06

Part No PHE840MY7100MD16R06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 20% 760VDC RADIAL
Datasheet
PHE840MY7100MD16R06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 1μF
Tolerance ±20%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 1.024" L x 0.433" W (26.00mm x 11.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 209918-PHE840MY7100MD16R06
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE840MY7100MD16R06 CAD Model

Description

The Kemet PHE840MY7100MD16R06 is a film capacitor that can be used in various electronic applications.

  • Capacitance: 1μF
  • Tolerance: ±20%
  • Voltage Rating (AC): 275V
  • Voltage Rating (DC): 760V
  • Safety Rating: X2 safety rated
  • Termination: has PC pins for termination
  • Material: polypropylene (PP) and is metallized
  • Height: 0.846 inches (21.50mm)
  • Lead Spacing: 0.886 inches (22.50mm)
  • Application: suitable for EMI and RFI suppression
  • Popularity: has a medium popularity in the market.
