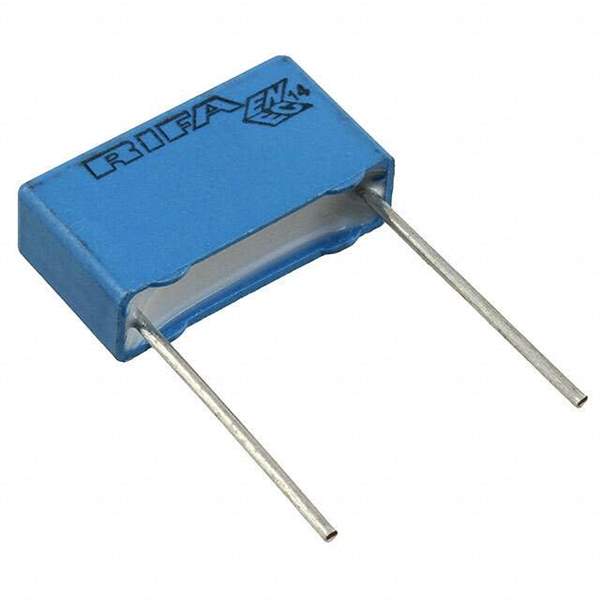

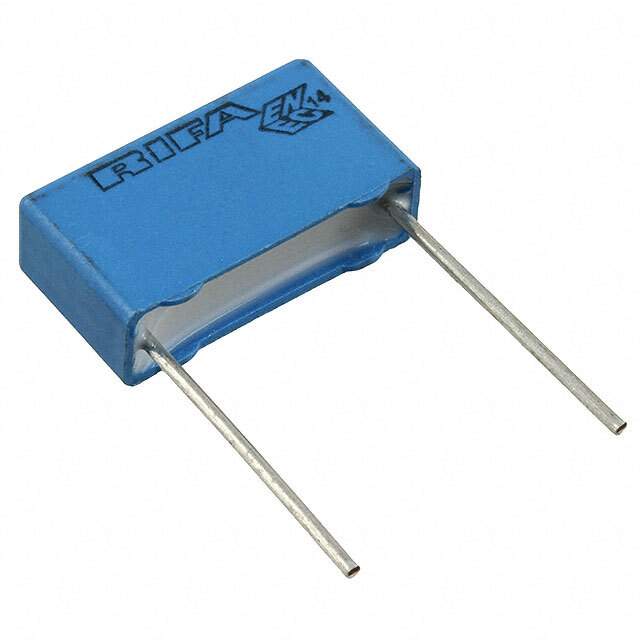

PHE840MB5470MB04R17 Real Image
Same model may have multiple batches, images only for reference.

PHE840MB5470MB04R17

Part No PHE840MB5470MB04R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.047UF 20% 760VDC RAD
Datasheet
PHE840MB5470MB04R17 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.047μF
Tolerance ±20%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 0.709" L x 0.217" W (18.00mm x 5.50mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 209911-PHE840MB5470MB04R17
Popularity Medium
Supply and Demand Status Limited
Quantity per package 800
Ultra Librarian 3D Model Ultra Librarian PHE840MB5470MB04R17 CAD Model

Description

The PHE840MB5470MB04R17 is an X2 safety rated capacitor manufactured by Kemet.

  • Application: designed for EMI and RFI suppression in various electronic devices
  • Capacitance: 0.047μF
  • Tolerance: ±20%
  • Voltage Rating: 275V AC and 760V DC
  • Packaging: available in bulk packaging
  • Lead Spacing: 0.591" (15.00mm)
  • Height: 0.413" (10.50mm)
  • Dimension: 0.709" L x 0.217" W (18.00mm x 5.50mm)
  • Supply and Demand: limited
  • Package: available in a package of 800
  • Win Source Part Number: 209911-PHE840MB5470MB04R17
