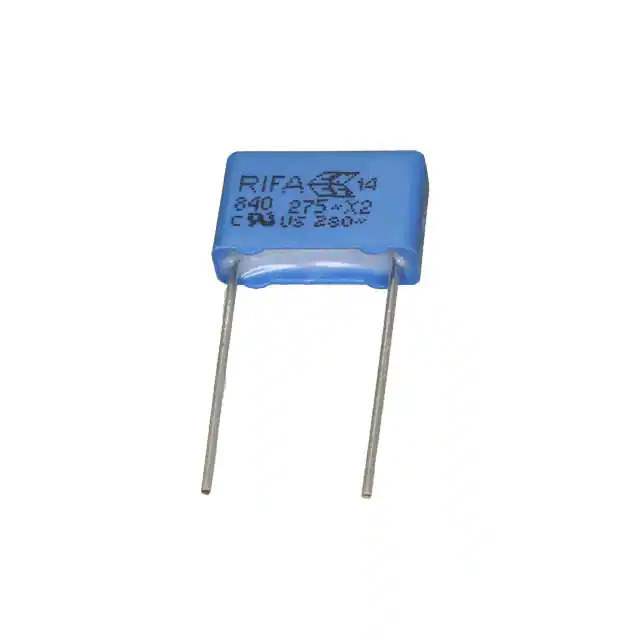

PHE840MA5330MA01R17 Real Image
Same model may have multiple batches, images only for reference.

PHE840MA5330MA01R17

Part No PHE840MA5330MA01R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.033UF 20% 760VDC RAD / 0.033 μF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial
Datasheet
PHE840MA5330MA01R17 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series PHE840M
Package Bulk
Product Status Active
Capacitance 0.033 µF
Tolerance ±20%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications EMI, RFI Suppression
Ratings X2
Base Product Number PHE840
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 930356-PHE840MA5330MA01R17
Ultra Librarian 3D Model Ultra Librarian PHE840MA5330MA01R17 CAD Model

Description

The 930356-PHE840MA5330MA01R17 is a film capacitor from the PHE840M series, manufactured by KEMET.

  • Termination: PC pins
  • Application: EMI and RFI suppression applications
  • Package: Bulk
  • Package Quantity: 1,000 pieces
  • Capacitance: 0.033 µF
  • Capacitance Tolerance: ±20%
  • Voltage Rating (AC): 275V
  • Voltage Rating (DC): 760V
  • Size: 0.512" L x 0.157" W (13.00mm x 4.00mm)
  • Seated Height: 0.354" (9.00mm)
  • Temperature Range: -55°C to 105°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8532.25.0010
