Same model may have multiple batches, images only for reference.

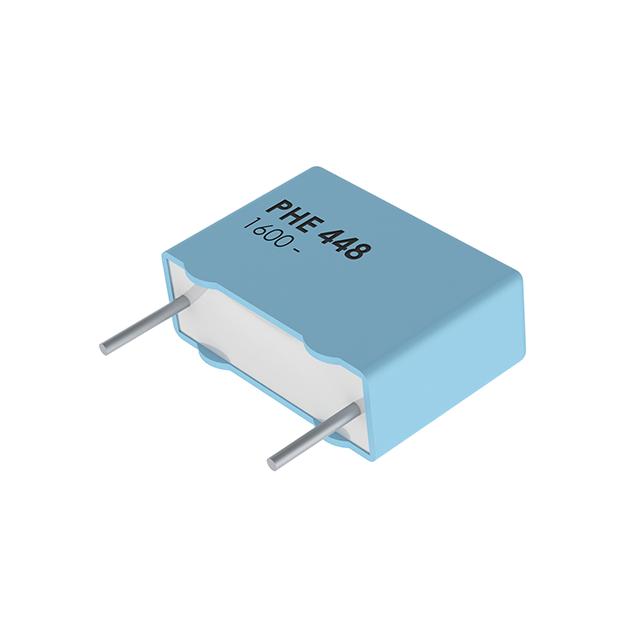

PHE448SB3150JR06 Real Image
Same model may have multiple batches, images only for reference.

PHE448SB3150JR06

Part No PHE448SB3150JR06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 150PF 5% 2KVDC RADIAL / 150 pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP) Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series PHE448
Package Box
Capacitance 150 pF
Tolerance ±5%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP)
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.709" L x 0.217" W (18.00mm x 5.50mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Frequency, Switching; High Pulse, DV/DT
Base Product Number PHE448
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0030
Other Names 399-PHE448SB3150JR06
Standard Package 1,000
Win Source Part Number 1048972-PHE448SB3150JR06
Ultra Librarian 3D Model Ultra Librarian PHE448SB3150JR06 CAD Model

Description

The Kemet 1048972-PHE448SB3150JR06 is a high-quality film capacitor that is designed to provide reliable performance in a wide range of electronic applications.

  • Series: PHE448
  • Capacitance: 150 picofarads
  • Voltage Rating: 700 volts AC and 2000 volts DC
  • Tolerance: plus or minus 5 percent
  • Mounting: through a hole
